GY Series

Ultra-High Power Fiber Laser Cutting Machine

POWER: 6kW-40kW
Working Area (W): 3048mm*1524mm,4000mm*2000mm
Working Area (W): 6000mm*2500mm,12000mm*2500mm

Overview
Features
Parameter

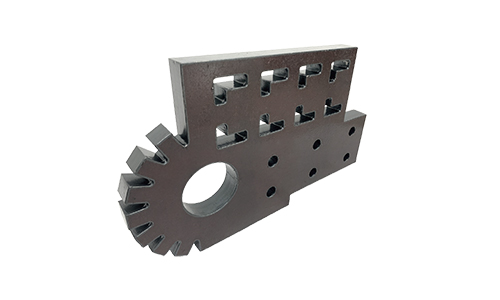

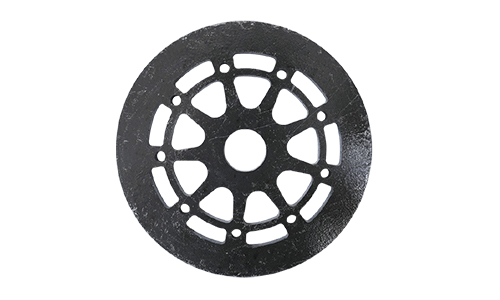

Samples

Overview

GY Series-Ultra-High Power Fiber Laser Cutting Machine

Hydraulic exchange platform, smooth lifting Original technology, time-divided, zoned, and segmented dust extraction structure to ensure air volume, so that the cutting heat and smoke are discharged together, which has a very good protective effect on the cutting stability

features

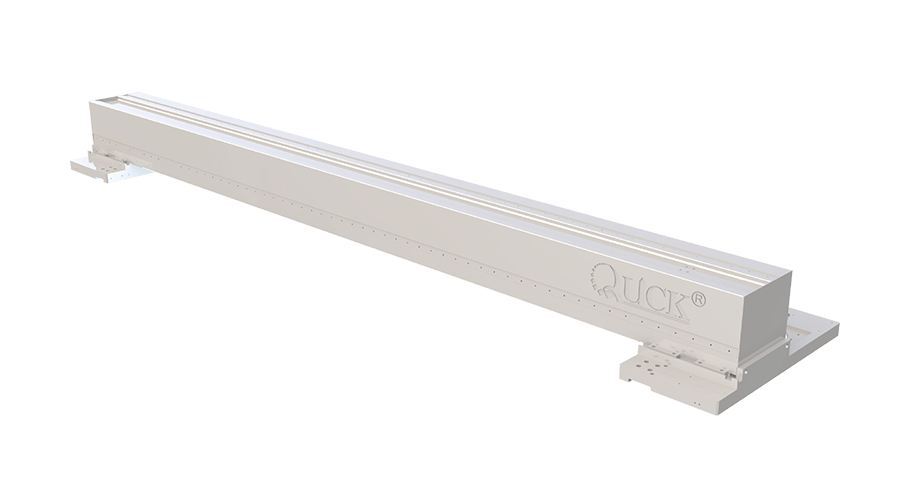

High strength aluminum alloy beam

Light weight
High dynamic performance

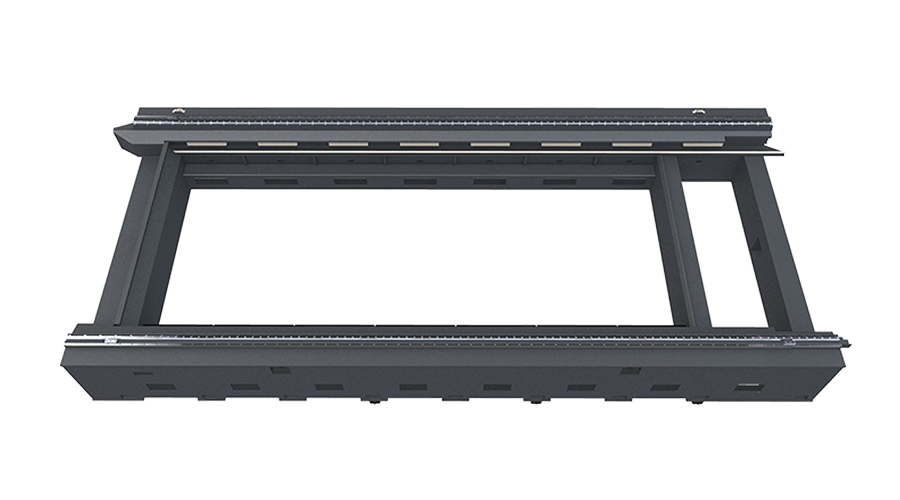

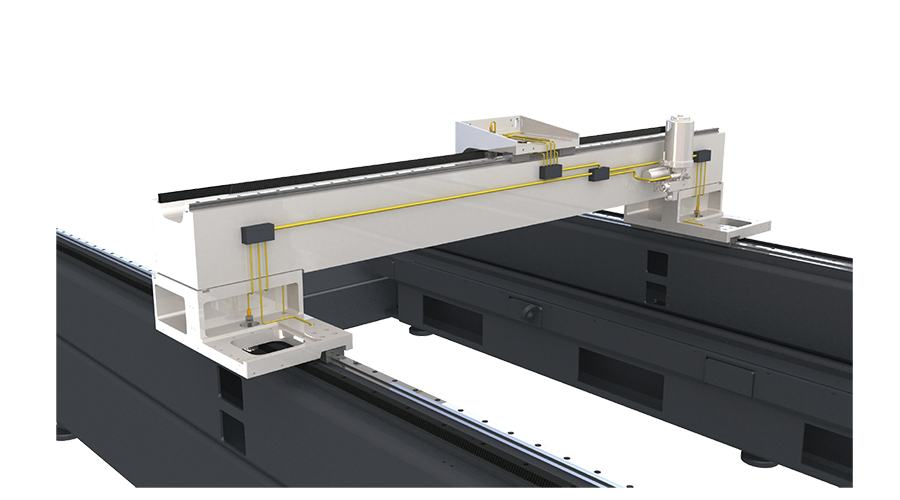

Integral welded structure machine tool

Design of hollow and semi-hollow structure of main lathe bed
Steel plate welded structure machine tool

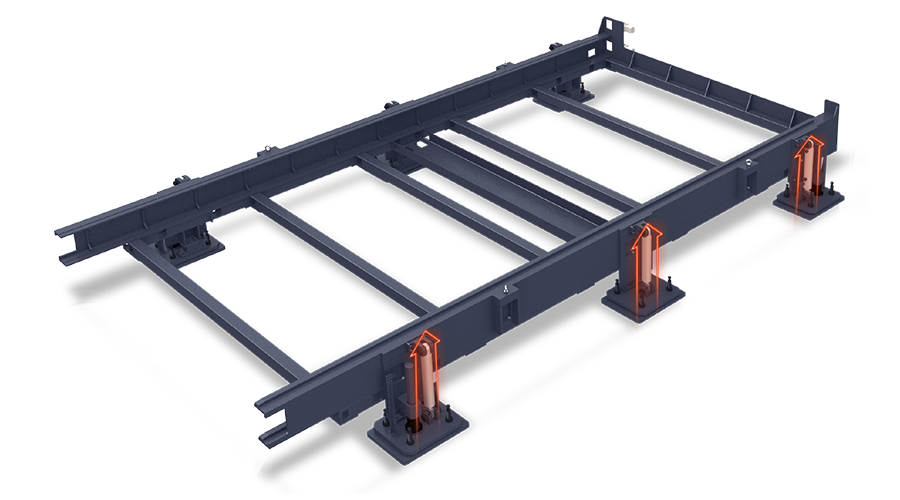

The hydraulic lifting mechanism

High bearing capacity
Stable and efficient

Automatic lubrication system

Intelligent integration
Visual control and maintenance-free

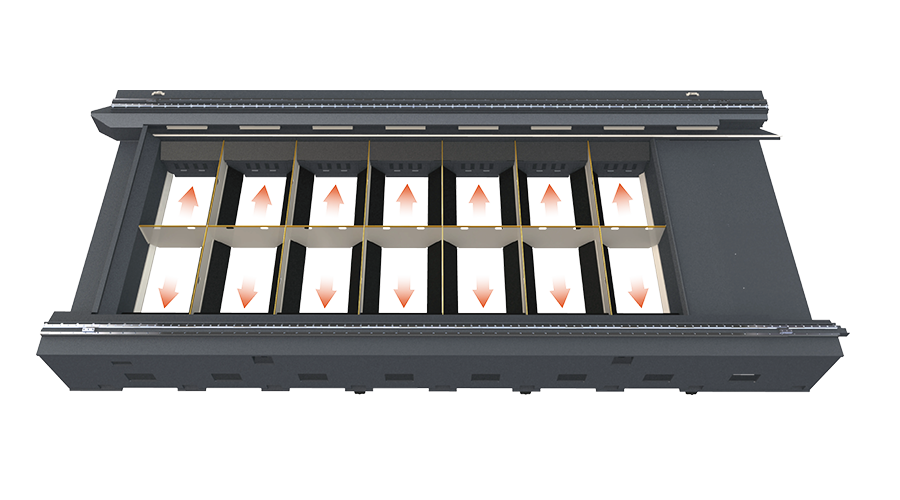

Double-sided partition dust removal

Less smoke and dust, environmental protection

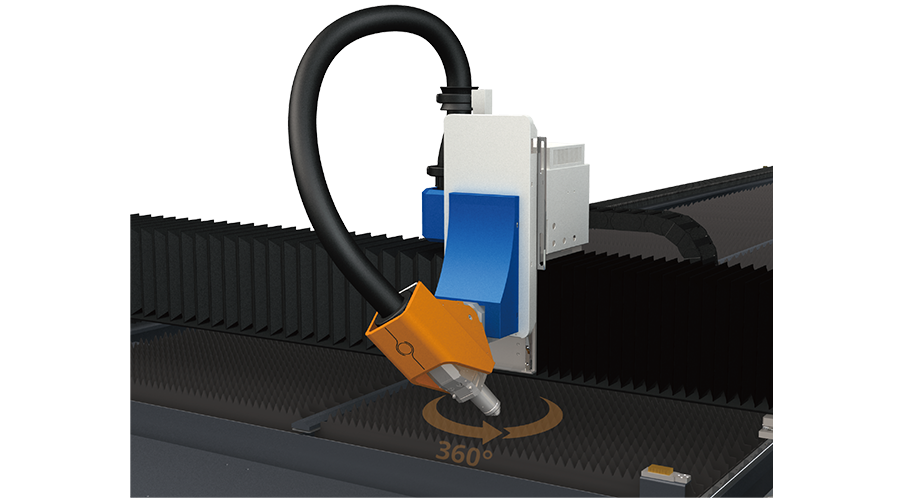

Multi-angle A/B rotating shaft mechanism(optional)

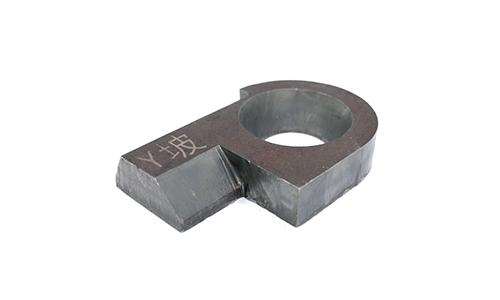

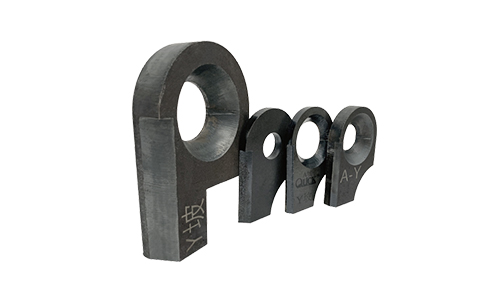

Precise control of bevel cutting trajectory Can cut k, x, y, a, v, etc.It can realize 360-degree infinite rotation cutting

PARAMETER

GY Series	GY3015	GY4020	GY6025	GY12025
Power	6kW-40kW		12kW-40kW
Cutting Area(length*width)	3048mm*1524mm	4000mm*2000mm	6000mm*2500mm	12000mm*2500mm
X-Axis Travel	3100mm	4100mm	6100mm	12200mm
Y-Axis Travel	1600mm	2100mm	2600mm	2600mm
Z-Axis Travel	150mm	150mm	150mm	150mm
X/Y Axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y Max. Linkage Speed	140m/min	140m/min	140m/min	140m/min
X/Y Max. Linkage Acceleration	2.5g	2.5g	2.5g	2.0g
