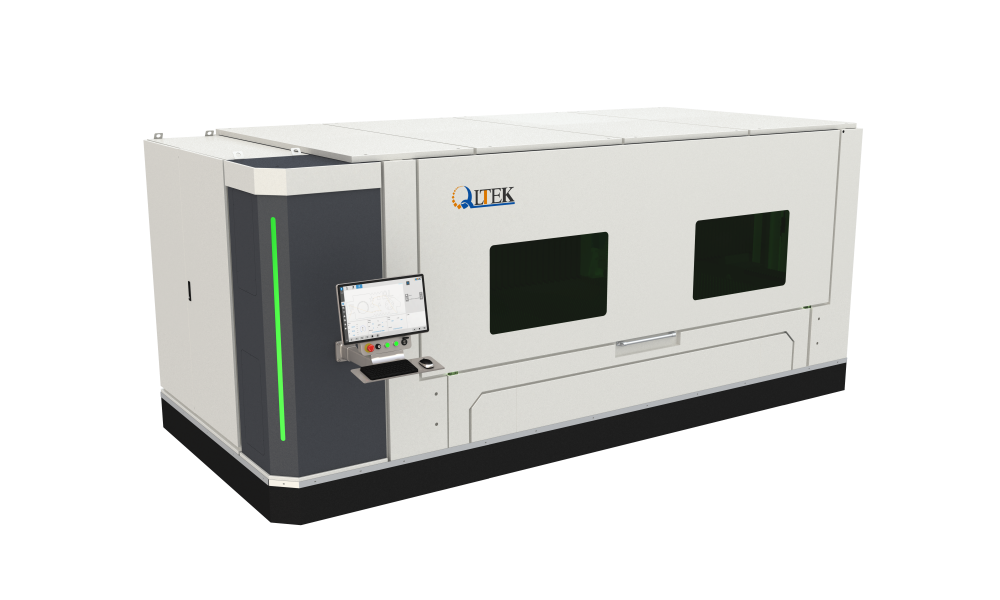

Product Overview
HE series sheet metal laser cutting machine delivers high processing accuracy with stable and precise cutting performance. Equipped with a fully automatic lubrication system and a closed peripheral protective cover, it ensures reliable operation, low maintenance, and enhanced safety for industrial applications.
Why Choose QLTEK HE Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature
Automatic lubrication system
- Small deformationamount
- High-precision
- Good dynamic performance
Double-sided partition dust removal
- Segmented and floor-mounted splicing
- The lathe bed is separated from the workbench

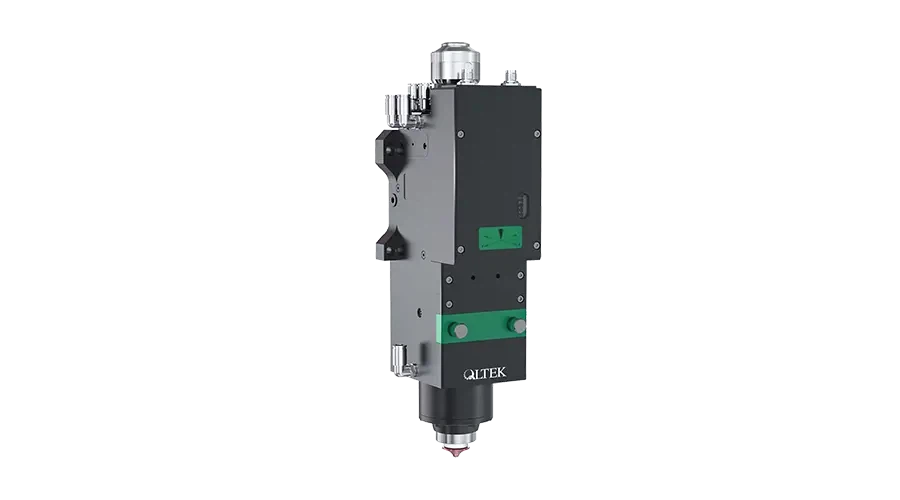

Auto-focusing cutting head
- Visual control and maintenance-free
- Pictures are for reference only.
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
HE Series |
HE1212 |
HE2512 |
HE3015 |
||
|
Power |
3kW-6kW |
||||
|
Cutting Area(Length*Width) |
1200mm*1200mm |
2500mm*1200mm |
3048mm*1524mm |
||
|
X-Axis Travel |
1250mm |
1250mm |
1570mm |
||
|
Y-Axis Travel |
1250mm |
2550mm |
3100mm |
||
|
Z-Axis Travel |
180mm |
180mm |
130mm |
||
|
X/Y Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
||
|
X/Y Max. Linkage Speed |
100m/min |
100m/min |
120m/min |
||
|
X/Y Max. Linkage Acceleration |
1.0g |
1.0g |
1.5g |
||

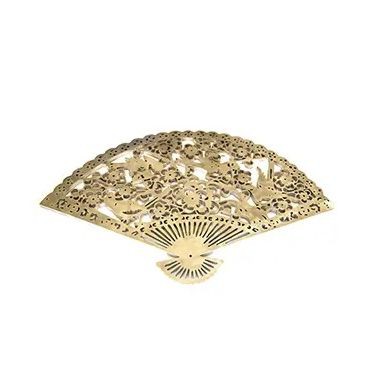

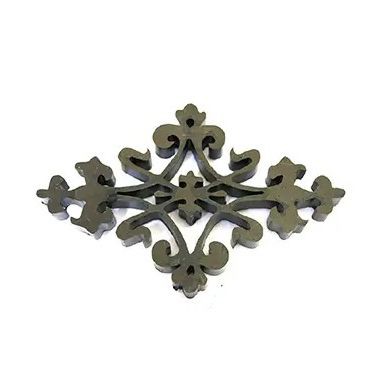

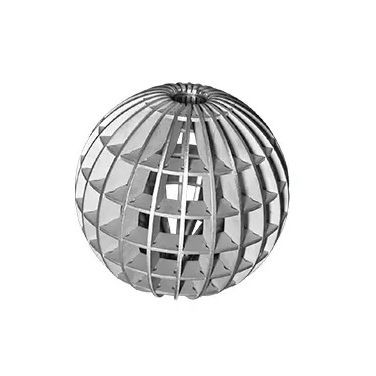

Samples
