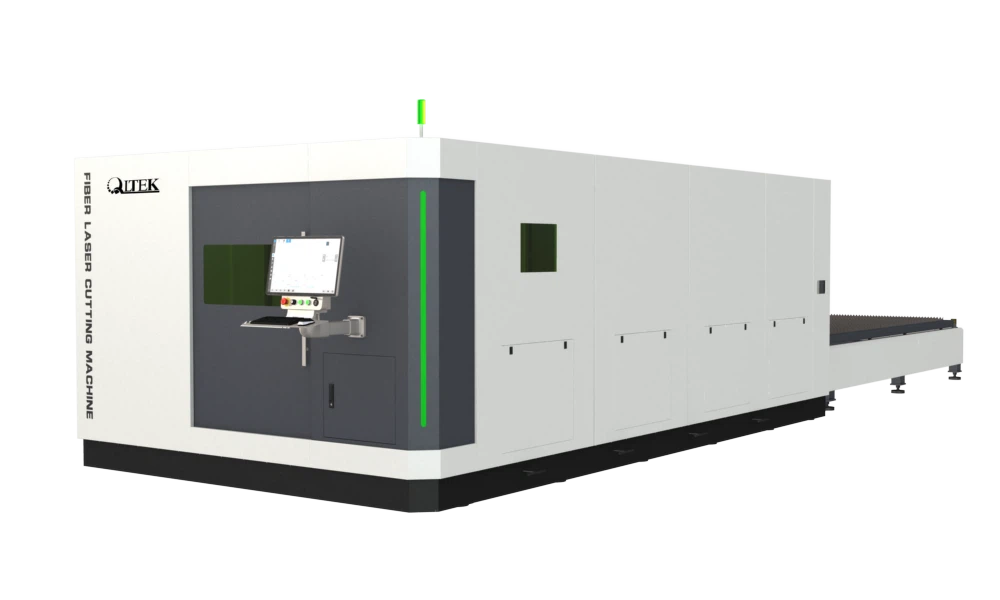

Product Overview
G Series Sheet Metal Laser Cutting Machine features a self-adaptive combined support foot and double spherical gasket design to reduce vibration and impact, ensuring stable high-speed operation. With automatic lubrication and intelligent visual integration, it delivers efficient, maintenance-free performance.
Why Choose QLTEK G Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

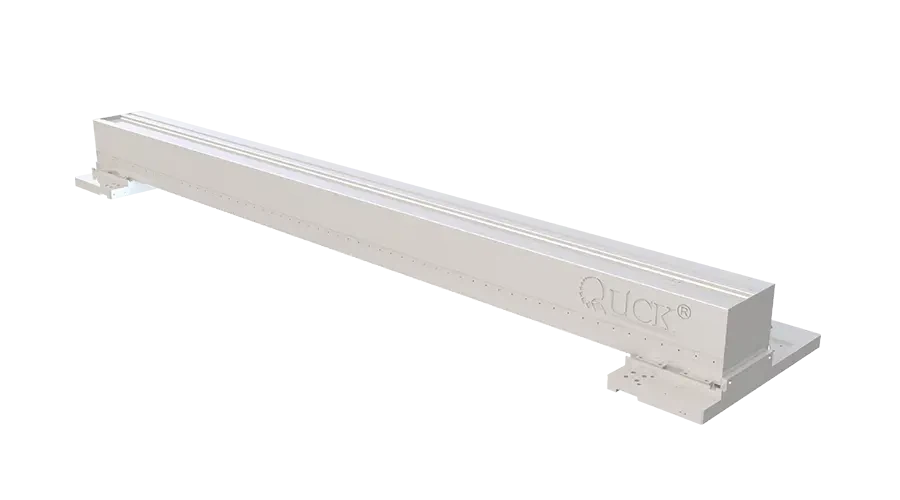

High strength aluminum alloy beam
- Light weight
- High dynamic performance
Integral welded structure machine tool
- High rigidity
- Precise welding process
Automatic lubrication system
- Intelligent integration
- Visual control and maintenance-free

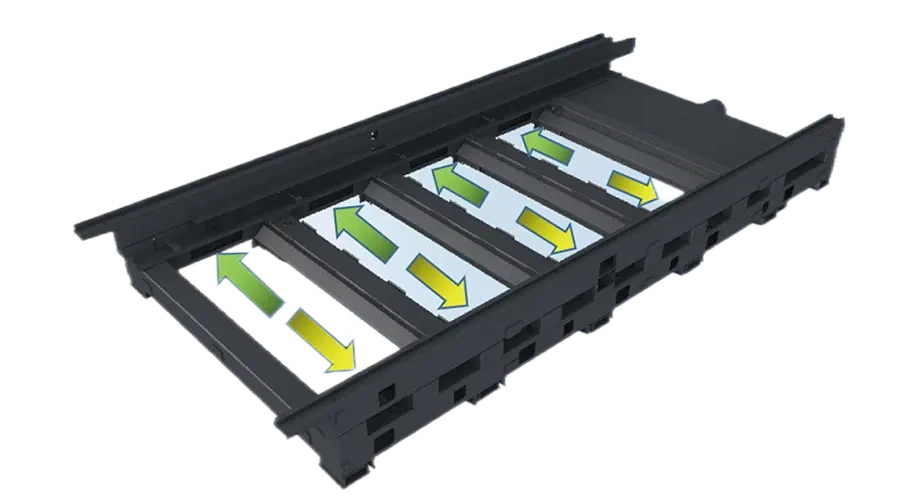

Double-sided partition dust removal
- Less smoke and dust, environmental protection

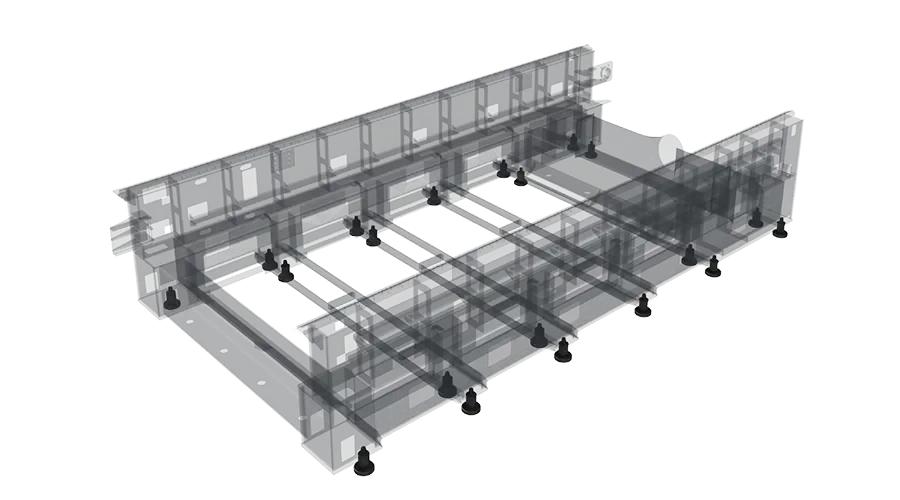

Self-adaptive combined support feet
- Double spherical gasket design, reduce the impact and vibration of operation, and make high-speed operation more stable
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
G Series |
G3015 |
G4020 |
G6025 |
||
|
Power |
3kW-12kW |
3kW-20kW |
|||
|
Cutting Area(Length*Width) |
3048mm*1524mm |
4000mm*2000mm |
6000mm*2500mm |
||
|
X-Axis Travel |
3100mm |
4050mm |
6050mm |
||
|
Y-Axis Travel |
1574mm |
2050mm |
2550mm |
||
|
Z-Axis Travel |
260mm |
260mm |
260mm |
||
|
X/Y Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
||
|
X/Y Max. Linkage Speed |
120m/min |
120m/min |
120m/min |
||
|
X/Y Max. Linkage Acceleration |
2.0g |
2.0g |
1.5g |
||

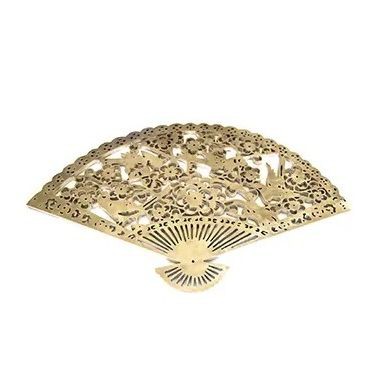

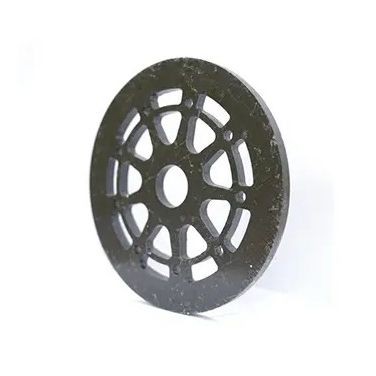

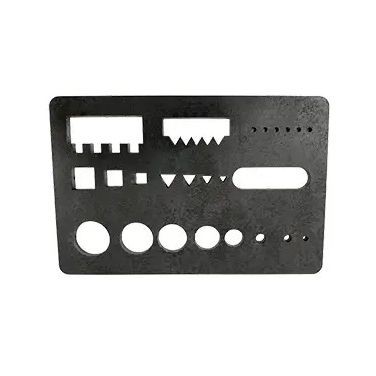

SAMPLES
