Suzhou Quick Laser Technology Co., Ltd. is one of the leading manufacturers and suppliers of h-beam fiber laser cutting machine in China. With abundant experience, we warmly welcome you to buy advanced h-beam fiber laser cutting machine for sale here from our factory. Quality products and reasonable price are available.

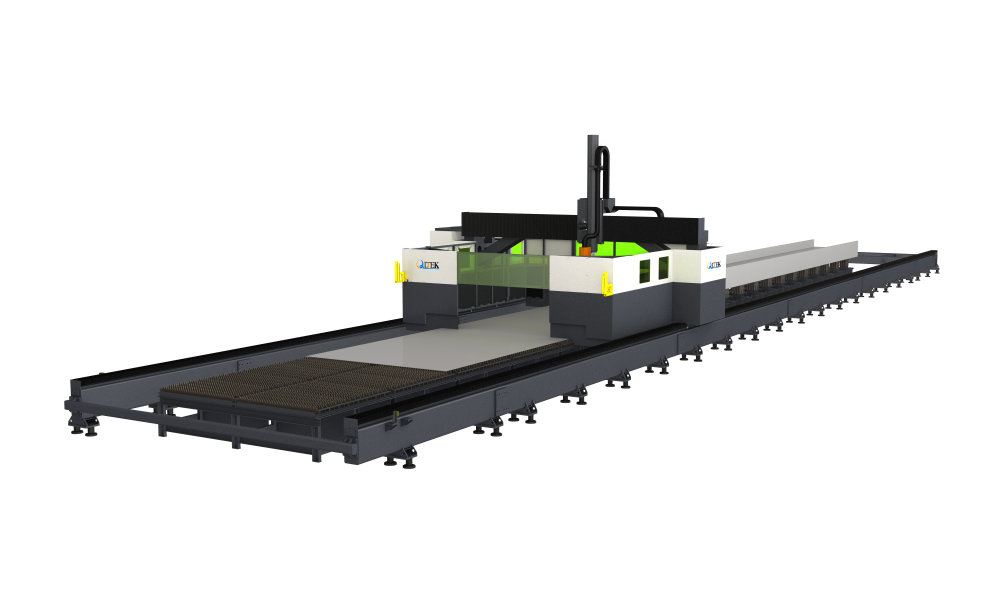

Product Overview
HM series sheet laser cutting machine features an integrated steel welded beam and precision lathe bed, offering stability and accuracy. Equipped with an auto-focusing cutting head, it ensures high-quality cuts for diverse applications.
Why Choose QLTEK HM Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

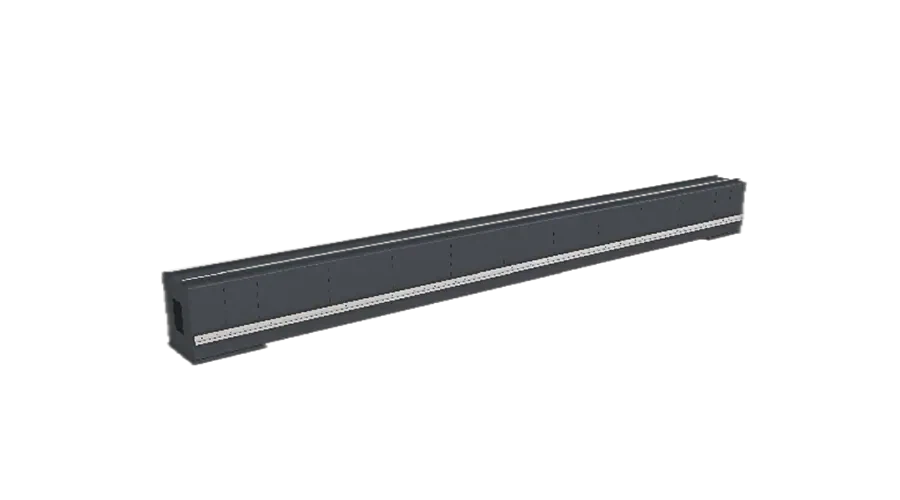

Integrated steel welded beam
- Small deformationamount
- High-precision
- Good dynamic performance

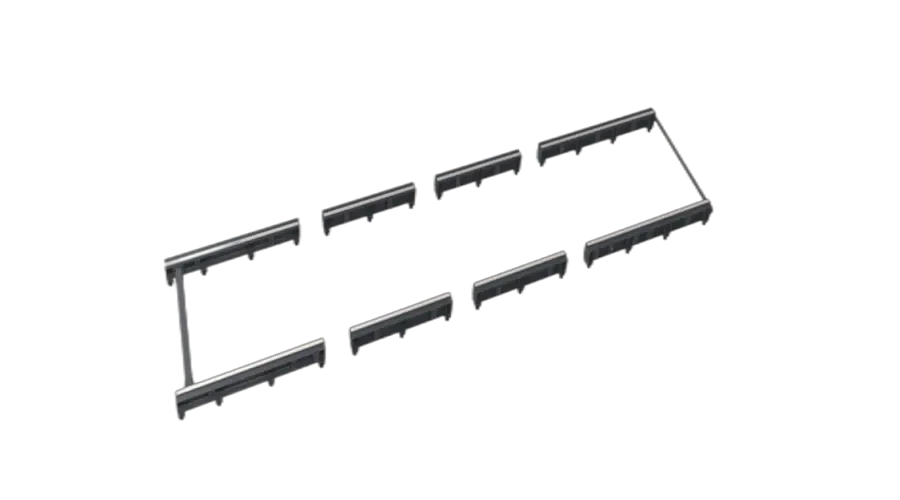

Precision welding combined lathe bed
- Segmented and floor-mounted splicing
- The lathe bed is separated from the workbench

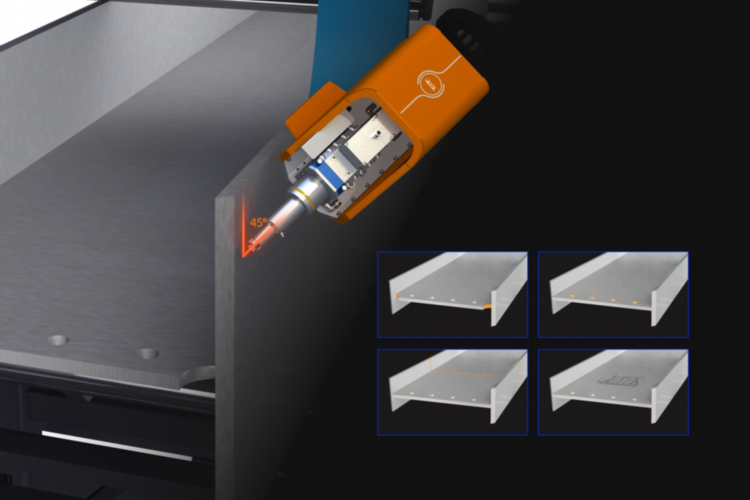

Features and applications
- Cutting, cutting holes, opening welding holes, beveling, marking and marking
- Equipped with fine hole cutting technology
- Support node cutting processes such as convex, oblique, and Z-joints
- Support direct import of 3D models such as TEKLA

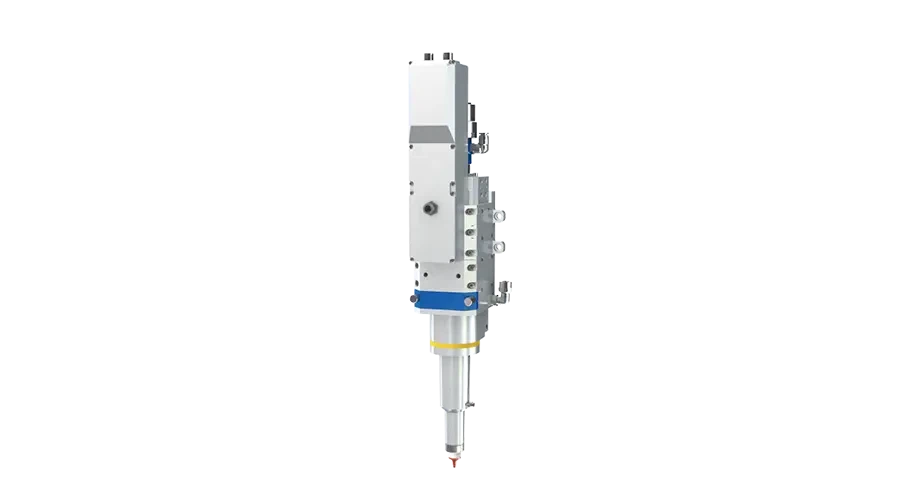

Auto-focusing cutting head
- Three protective glasses are tight and dust-tight
- Independent module design of all-optical lens group, convenient maintenance
- Intelligent temperature monitoring of optical lens group
- Slender capacitor tip design, flexible cutting of all kinds of concave channel steel or H steel

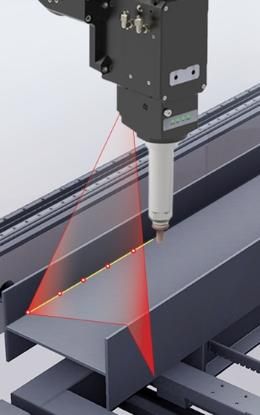

Line laser positioning
- Contour and dimension positioning, dimension and deformation compensation
Features and applications
- Cutting, cutting holes, opening welding holes, beveling, marking and marking
- Support node cutting processes such as convex, oblique, and Z-joints
- Support direct import of 3D models such as TEKLA
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
HM Series |
HM26025 |
HM26020 |
|||
|
Power |
12kW-30kW |
12kW-30kW |
|||
| Cutting Area(length*width) |
Plane ：26000mm*2500mm Groove：26000mm*2500mm |
Plane ：26000mm*2000mm Groove：26000mm*2000mm |
|||
|
Y-Axis Travel |
27000mm |
26500mm |
|||
|
Z-Axis Travel |
1250mm |
1250mm |
|||
|
Processing Range of H-beam Steel |
1000mm-12000mm |
1000mm-12000mm |
|||
|
X/Y Axis Postioning Accuracy |
±0.05mm/m |
±0.05mm/m |
|||
|
Processing Range |
Web 1500mm x Wing 600mm |
Web 1000mm x Wing 600mm |
|||
Samples
