Suzhou Quick Laser Technology Co., Ltd. is one of the leading manufacturers and suppliers of two-chuck high -speed laser cutting machine in China. With abundant experience, we warmly welcome you to buy advanced two-chuck high -speed laser cutting machine for sale here from our factory. Quality products and reasonable price are available.
Product Overview

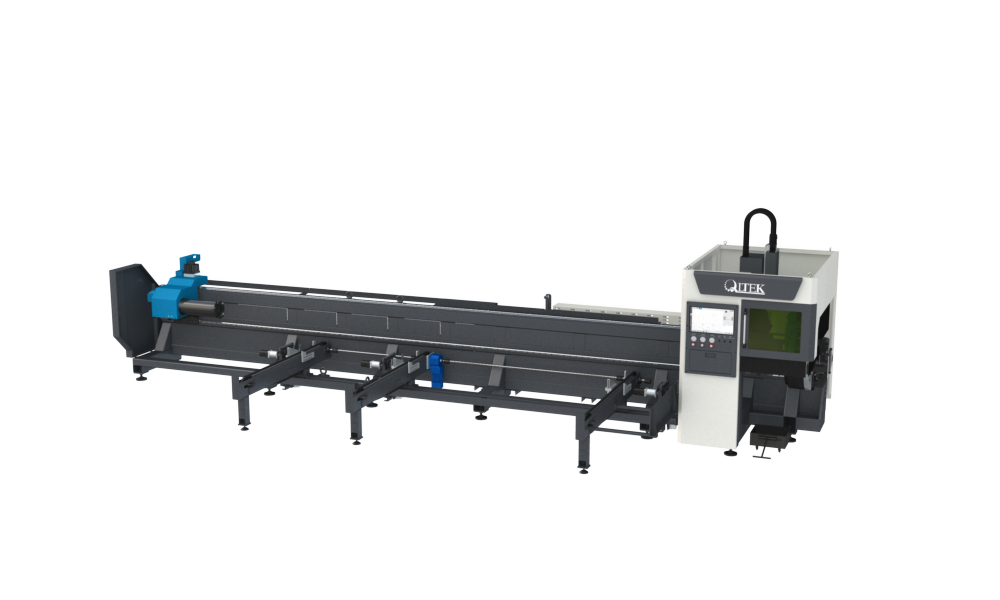

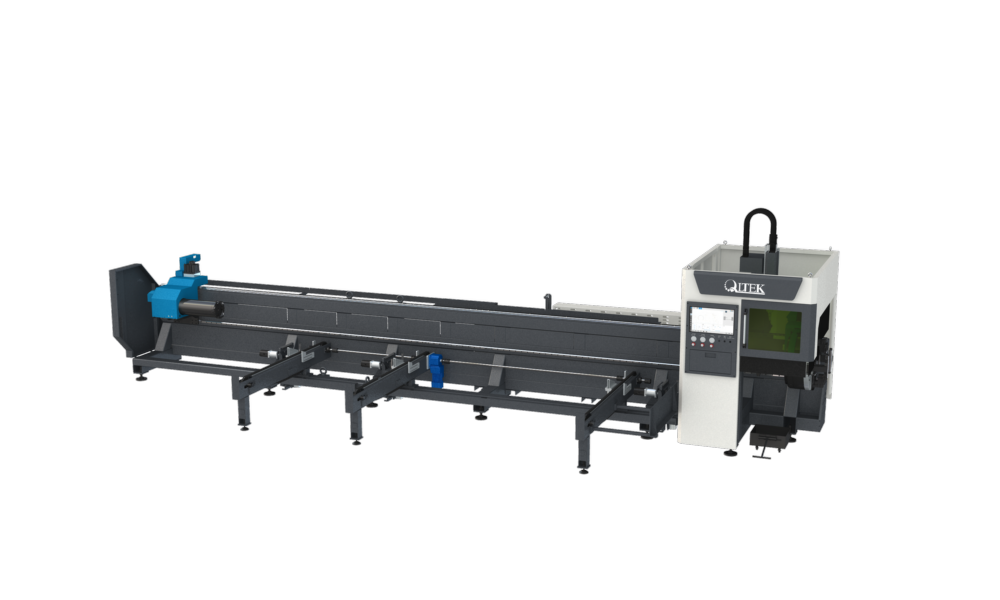

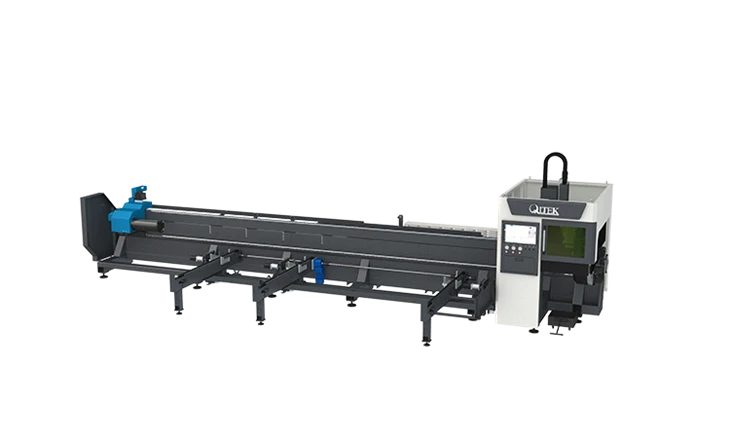

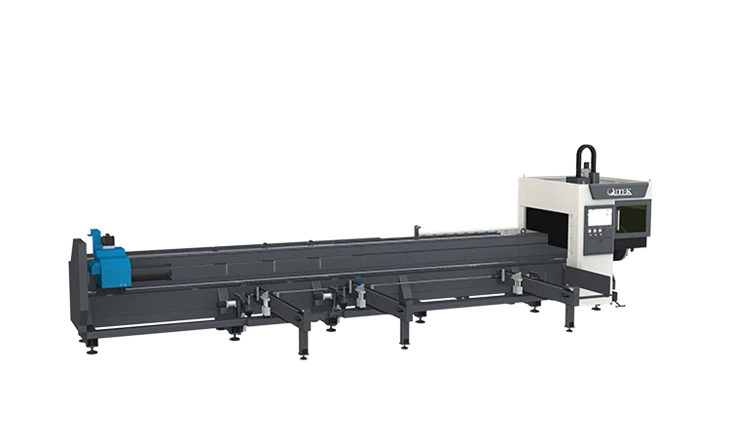

L-ULTRA Series Laser Tube Cutting Machine features zero scrap cutting technology, high-speed and high-precision processing, and optimized material utilization. Equipped with a full-automatic loading system, dual-station design, and auxiliary unloading machine, it ensures continuous and efficient production. Locked composite gripper, high-speed precision square chuck, and servo follower support provide stable clamping and reliable tube handling for accurate cutting performance.
Why Choose QLTEK L-ULTRA Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

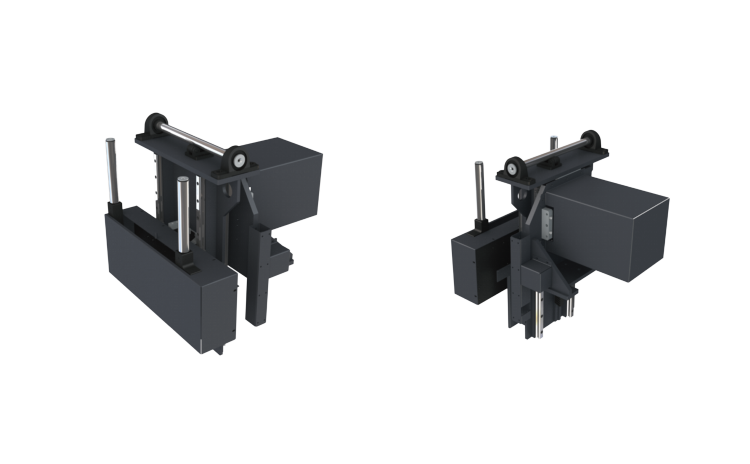

Servo follower support
- Automatic servo-controlled support for stable tube processing
- Prevents tube sagging and improves cutting accuracy
- Ideal for long and heavy tube applications

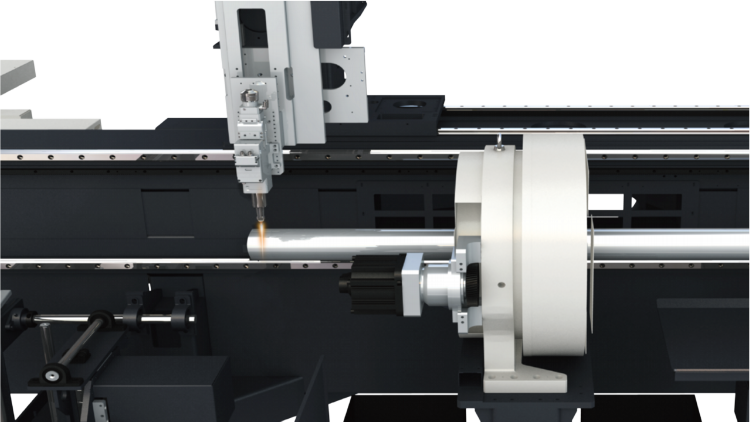

Zero scrap cutting
- Advanced cutting strategy designed to minimize material waste during production
- Optimized nesting and cutting paths for maximum material utilization
- Reduces scrap generation and improves overall production efficiency

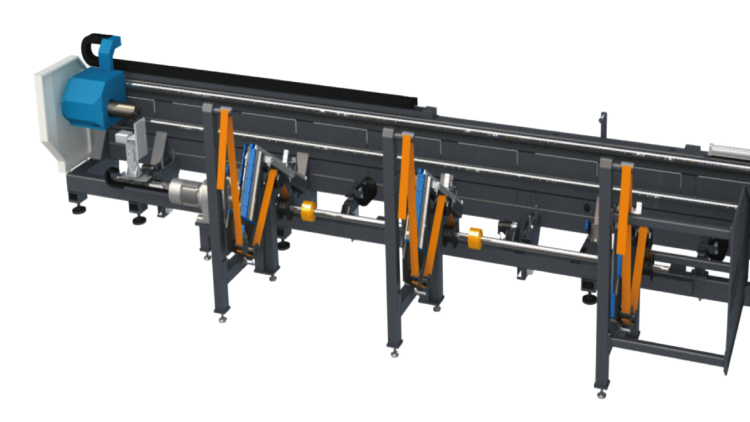

Full-automatic lodaing machine
- Automated material loading system for continuous production efficiency
- Reduces manual handling and improves overall safety and workflow stability

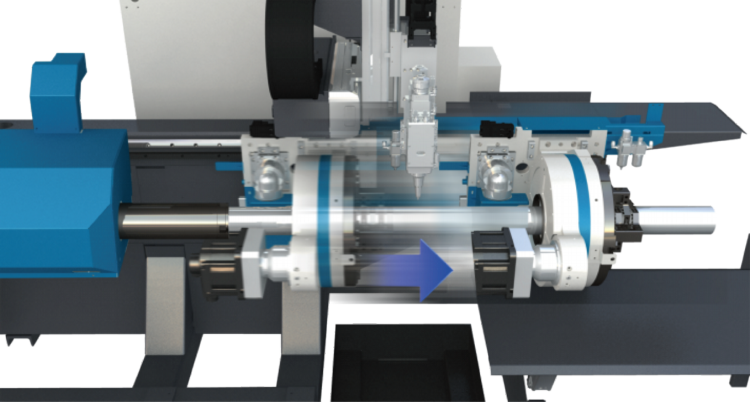

Dual-station design
- Dual working stations enable continuous loading and processing for higher productivity
- Allows simultaneous operation to reduce downtime and improve machine efficiency

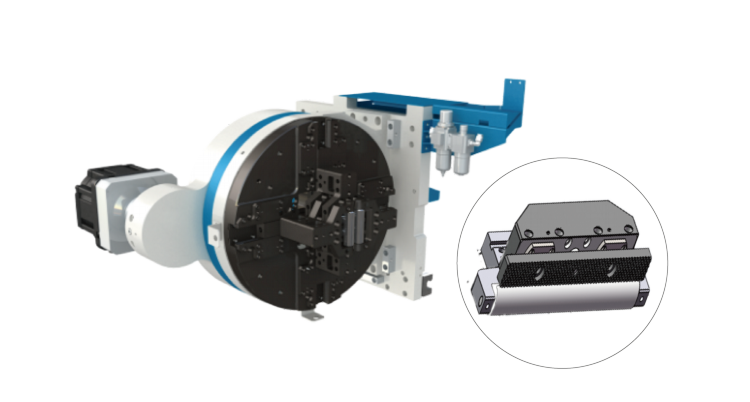

Locked compostie gripper
- Secure locking composite gripper design for stable and reliable material clamping
- Prevents slippage during high-speed handling and cutting operations

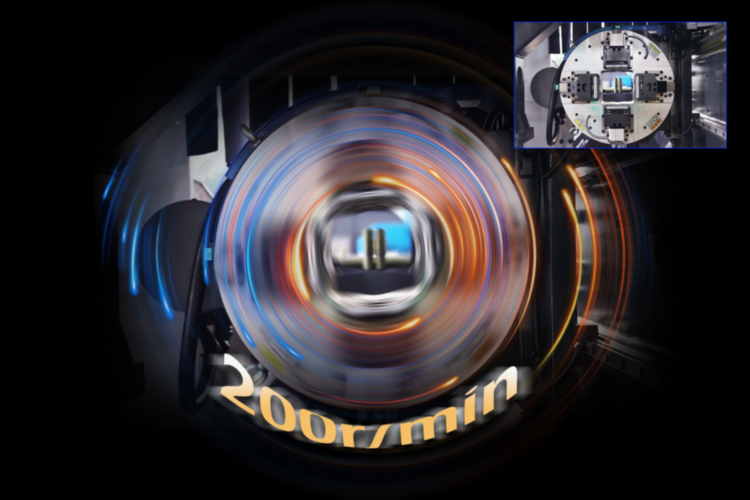

High-seppd precision square chuck
- High-speed rotation capability designed for efficient industrial processing
- Precision square chuck structure ensures stable and accurate clamping of workpieces

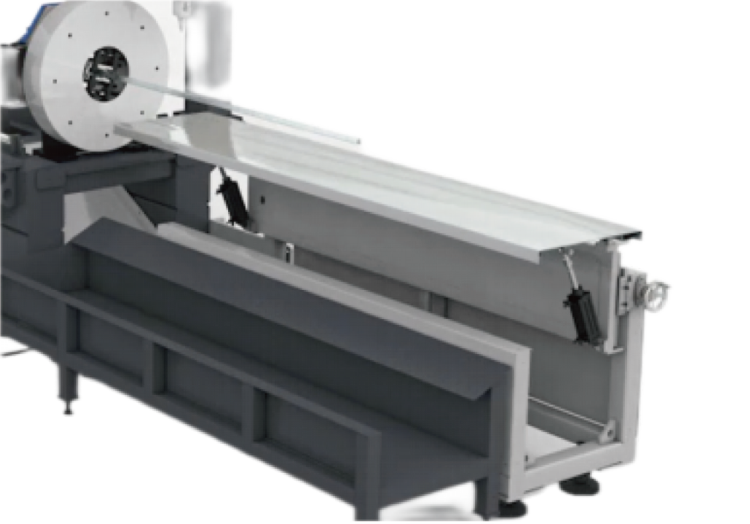

Auxiliary unloading machine
- Automated unloading system for efficient post-processing material handling
- Reduces manual labor and improves overall production line safety and efficiency
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
L Series |
L1 ULTRA |
L2 ULTRA |
|||
|
Power |
1.5kW-6kW |
||||
|
Processing Range |
Φ8mm-120mm |
Φ15mm-240mm |
|||
|
X/Y-Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
|||
|
X/Y-Axis Repositioning Accuracy |
±0.03mm |
±0.03mm |
|||
|
Max. No-Load Running Speed |
150m/min |
150m/min |
|||
|
Max. Chuck Rotating Speed |
200r/min |
120r/min |
|||
|
Max. Weight of A Single Pipe |
50kg |
260kg |
|||
|
Maximum Processing Length |
6500mm |
6500mm |
|||
|
Maximum Conbined Acceleration of X and Y Axes |
2.0g |
1.5g |
|||

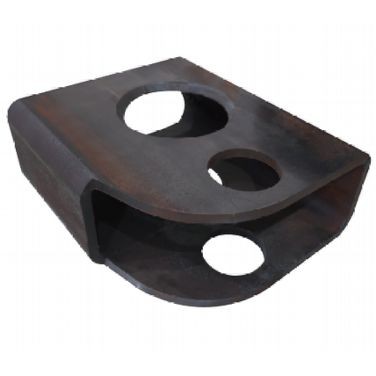

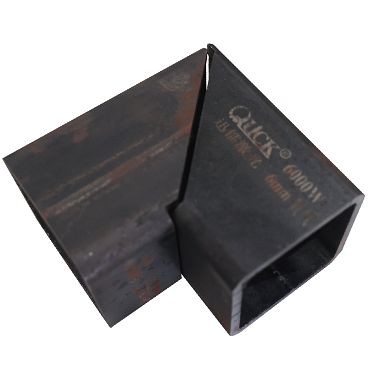

Processing Samples Gallery
