Suzhou Quick Laser Technology Co., Ltd. is one of the leading manufacturers and suppliers of high-speed fiber laser cutting machine in China. With abundant experience, we warmly welcome you to buy advanced high-speed fiber laser cutting machine for sale here from our factory. Quality products and reasonable price are available.
Product Overview

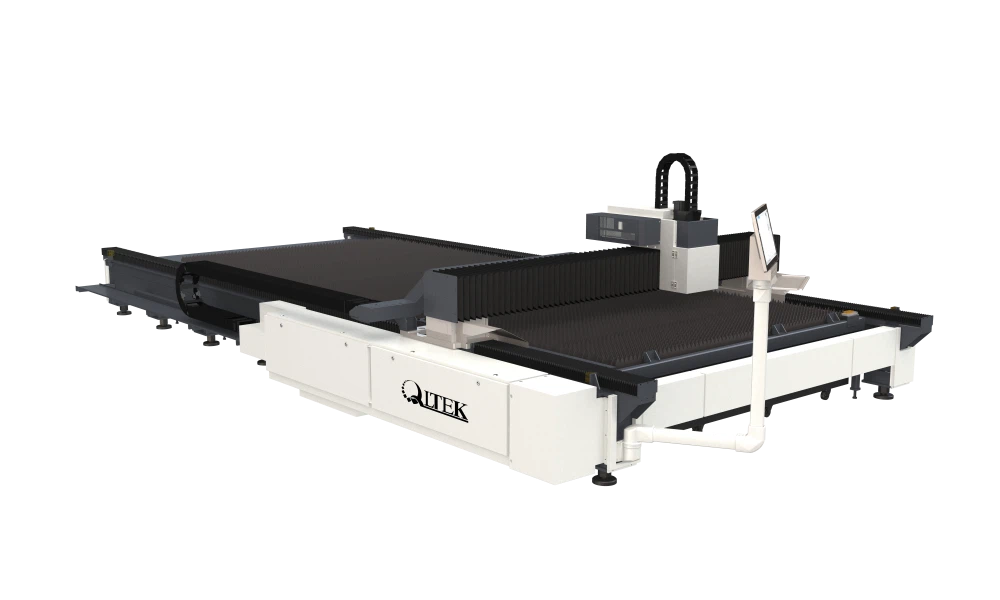

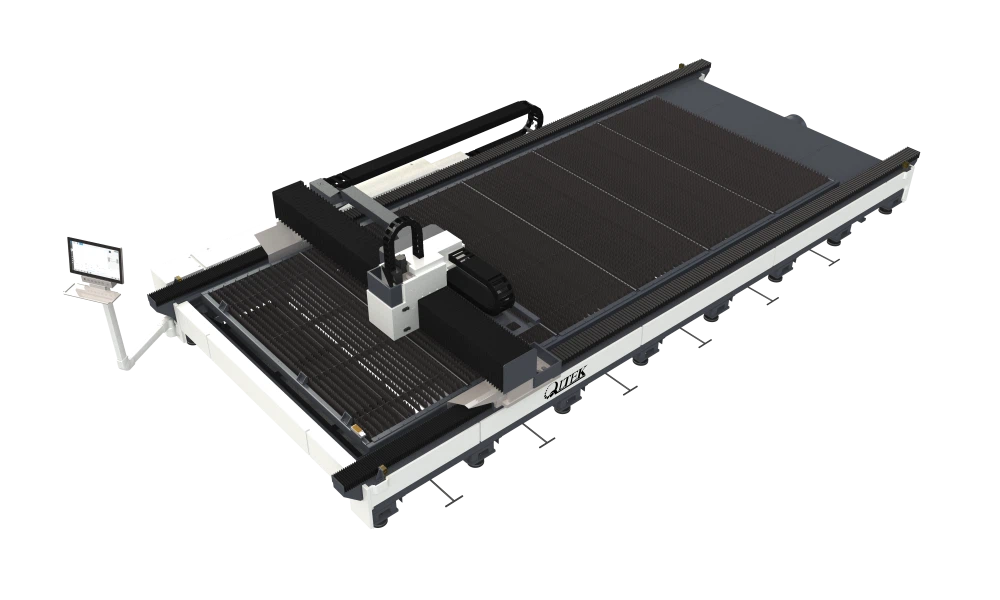

H (High-Speed) laser cutting machine features an aviation-grade aluminum extruded beam for high rigidity and speed, a fully automatic lubrication system, an intermediate dust extraction structure, and an integrated electronic control system for stable, efficient operation.
Why Choose QLTEK H Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

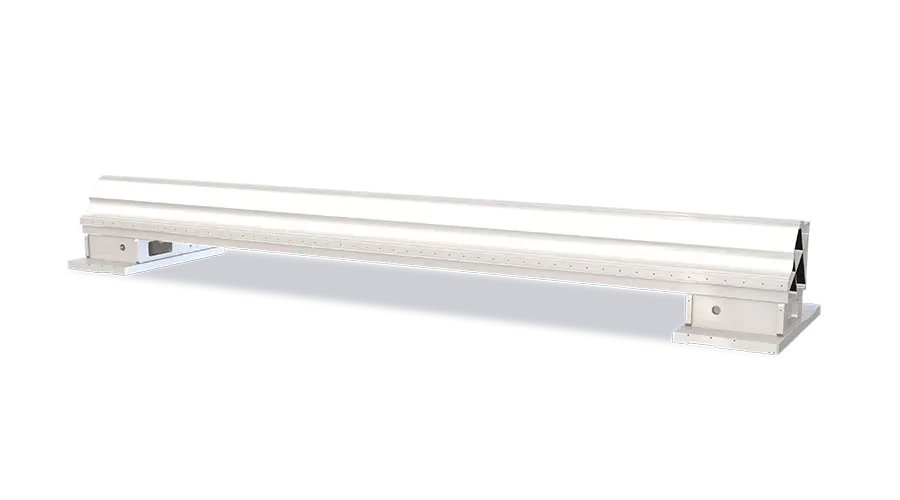

High strength aluminum alloy beam
- Light weight
- High dynamic performance

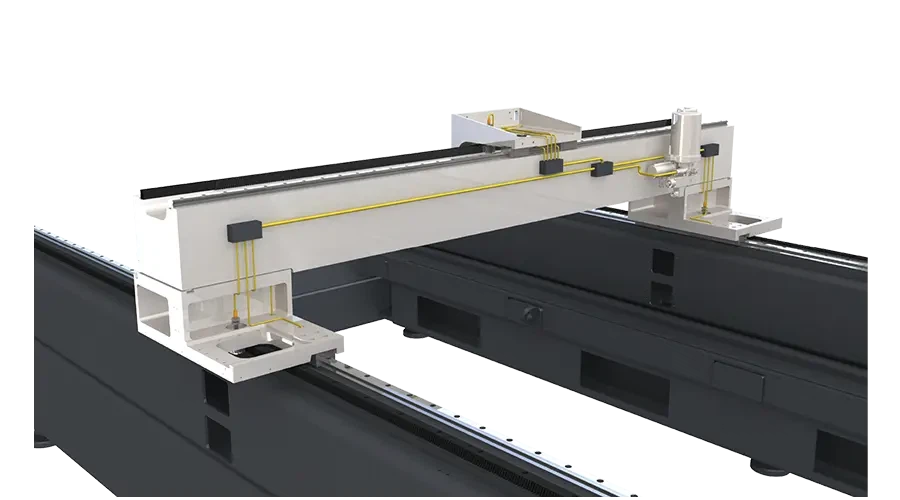

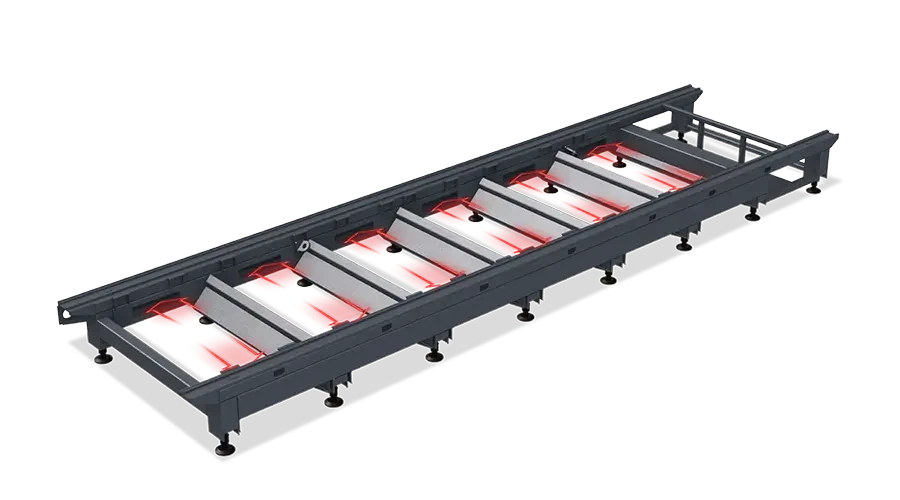

Automatic lubrication system
- Intelligent integration
- Visual control and maintenance-free

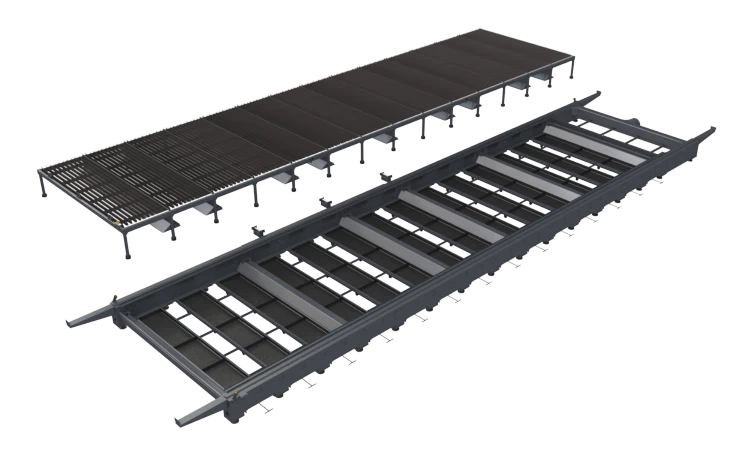

Double-sided partition dust removal
- Less smoke and dust, environmental protection
Auto-focusing cutting head
- Adapting to different materials and thicknesses, the focal length is automatically adjusted to the best cutting distance, and the efficiency is improved.
- Pictures are for reference only.

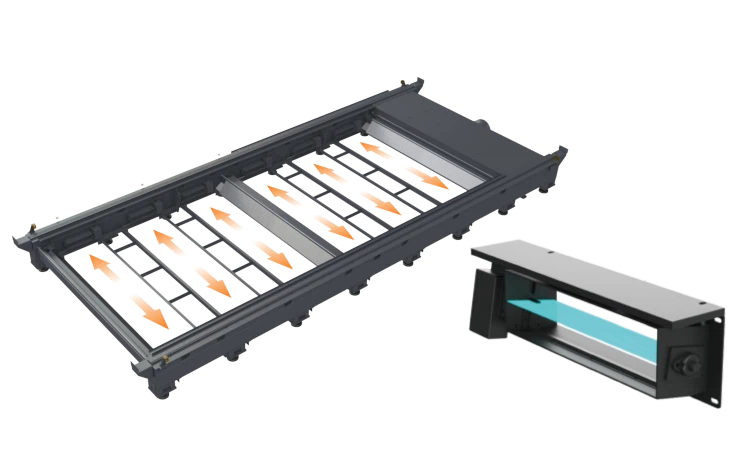

Segmented dust extraction structure
- Zone-based fume & dust capture efficiency optimization
- Modular extraction segments for easy maintenance and replacement
- Reduced cross-contamination between processing zones
- Improved filter life through targeted dust load distribution
Split-type workbench
- Easier maintenance and replacement of table components
- Enhanced load distribution for stable heavy-duty cutting
- Reduced downtime through sectional serviceability
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
H Series |
H3015 |
H4020 |
H6015 |
H6025 |
|
|
Power |
3kW-12kW |
3kW-40kW |
|||
|
Cutting Area(Length*Width) |
3000mm*1500mm |
4000mm*2000mm |
6000mm*1500mm |
6000mm*2500mm |
|
|
X-Axis Travel |
3050mm |
4050mm |
6050mm |
6050mm |
|
|
Y-Axis Travel |
1550mm |
2050mm |
1550mm |
2550mm |
|
|
Z-Axis Travel |
80mm |
80mm |
80mm |
130mm |
|
|
X/Y Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
|
|
X/Y Max. Linkage Speed |
100m/min |
100m/min |
100m/min |
120m/min |
|
|
X/Y Max. Linkage Acceleration |
2.0g |
2.0g |
2.0g |
2.0 |
|

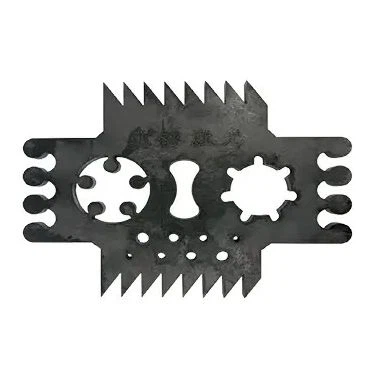

Samples
