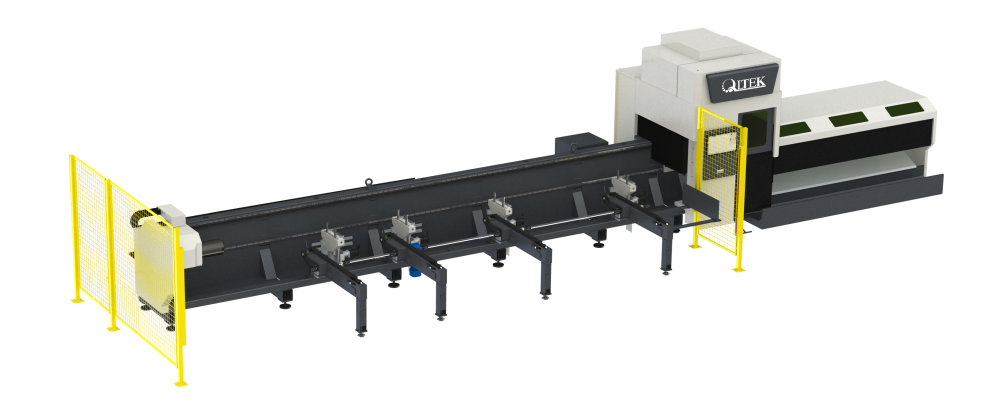

Suzhou Quick Laser Technology Co., Ltd. is one of the leading manufacturers and suppliers of light-duty two-chuck laser tube cutting machine in China. With abundant experience, we warmly welcome you to buy advanced light-duty two-chuck laser tube cutting machine for sale here from our factory. Quality products and reasonable price are available.
Product Overview
L Series Laser Tube Cutting Machine features a precision square chuck, high-speed and high-precision cutting, minimal waste, and chuck avoidance. Optional auxiliary blanking machine and reliable follow-up support ensure efficient, accurate tube processing.
Why Choose QLTEK L Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature
Precision square chuck
- Automatic adjustment, stable loading, and high follow-up precision

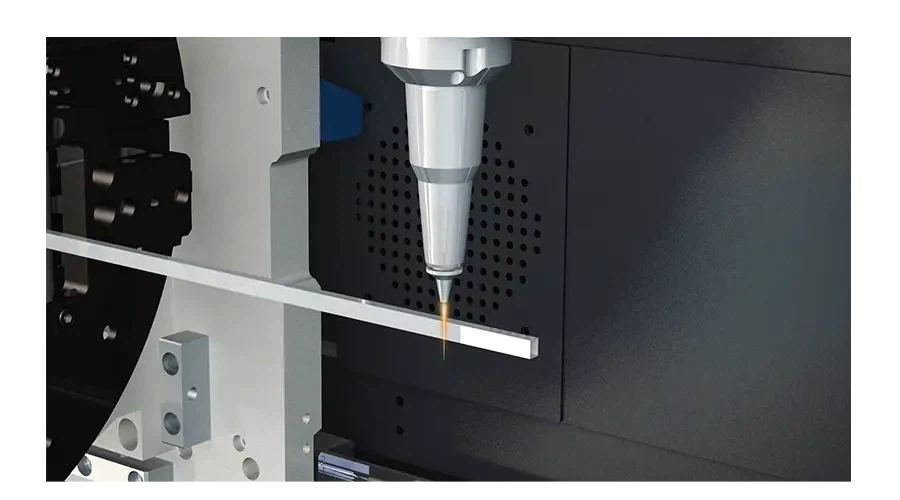

High-speed and high-precision cutting
- Minimum 8mm small pipe
- Maximum rotation speed 150 r/min
- High precision of finished products

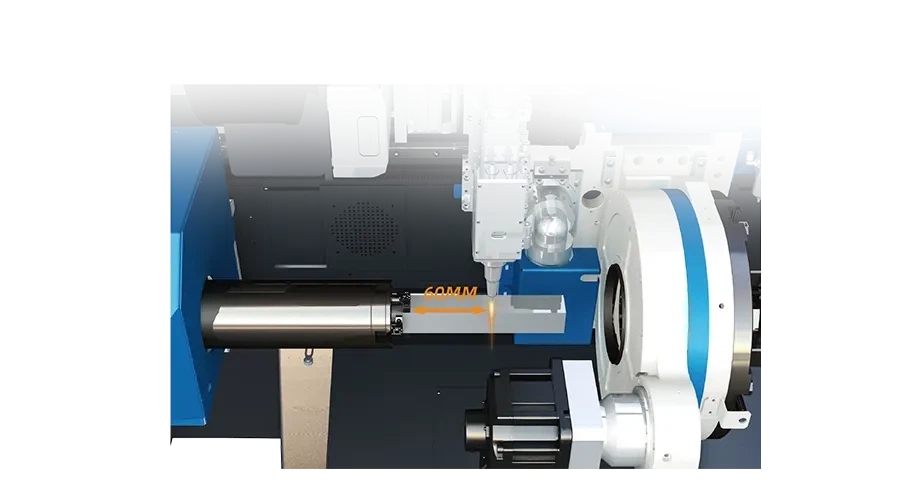

Short waste
- The minimum cutting waste material length for L1 model is 60mm

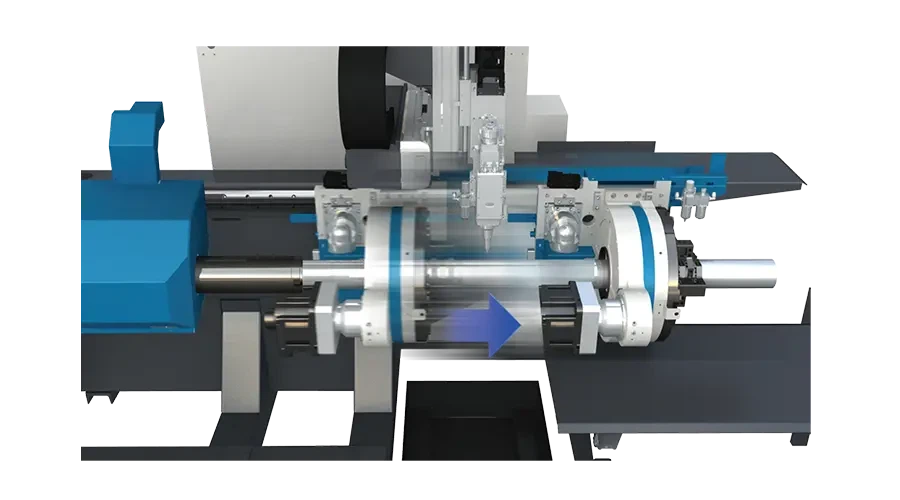

Chuck avoidance
- Servo driven chuck movement: high speed, high precision, low failure rate, efficient completion of short waste material cutting

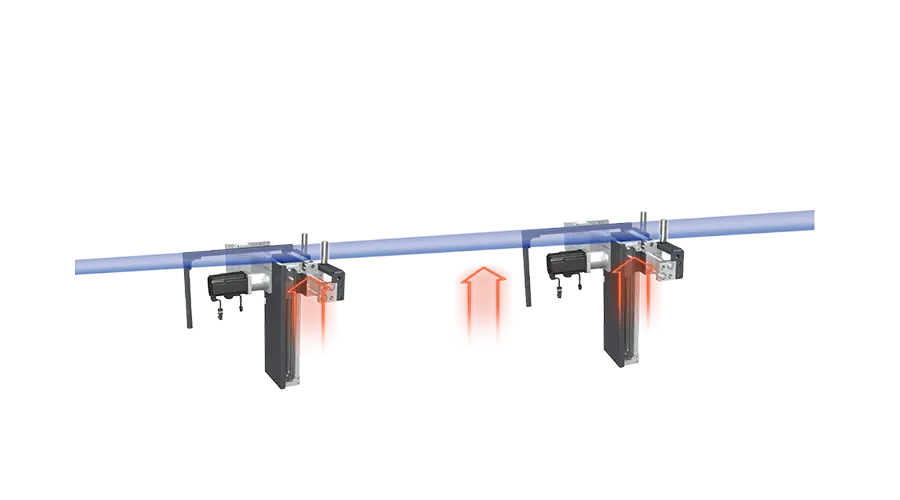

Follow-up support
- Automatic adjustment, stable loading, and high follow-up precision
- The position of the pipe support can be quickly adjusted according to the shape of the pipe to reduce deviations caused by unstable support

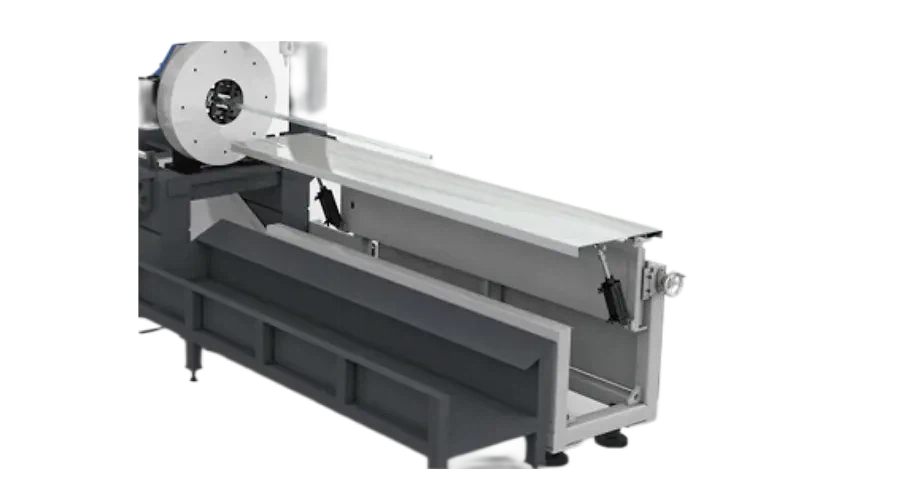

Auxiliary blanking machine (optional)
- Servo follow-up + pneumatic flap
- Meet the blanking requirements of parts within 3m
|
PARAMETER |
||||||
|---|---|---|---|---|---|---|
|
L Series |
L1 |
L2 |
L3 PRO | |||
|
Power |
1.5kW-6kW |
3kw-20Kw | ||||
|
Processing Range |
Φ8mm-120mm |
Φ15mm-240mm |
Φ20mm-360mm □20mm-360mm |
|||
|
X/Y-Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m | |||
|
X/Y-Axis Repositioning Accuracy |
±0.03mm |
±0.03mm |
±0.03mm | |||
|
Max. No-Load Running Speed |
150m/min |
100m/min |
80m/min | |||
|
Max. Chuck Rotating Speed |
150r/min |
100r/min |
80r/min | |||
|
Max. Weight of A Single Pipe |
50kg |
230kg |
1200kg | |||
|
Maximum Processing Length |
6500mm |
6500mm |
6500mm | |||
Processing Samples Gallery
