Product Overview
K-series laser tube cutting machine by QLTEK LASER features ±45° bevel cutting (optional), 360° shape cutting, and versatile clamping. It handles various pipe types freely, breaking shape limits for diverse processing.
Why Choose QLTEK K Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

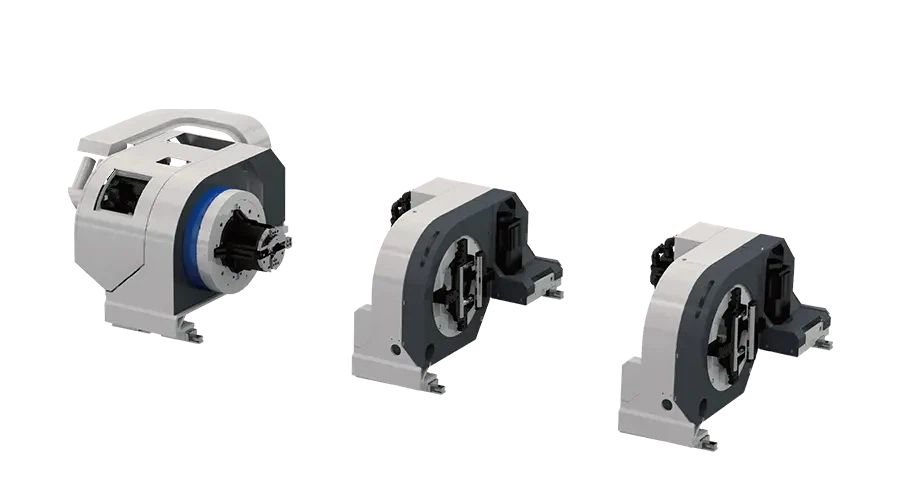

Self-developed high precision chuck
- High Precision:Drived with rack and pinion, central re-positioning accrucy upto 0.05mm
- Outstanding versatility:With the accurate ±1.0kg clamp capacity, the chuck can ensure the tube from deformation
- Fully sealed design: real-time supply of gas and lubricant, stable pressure in sealed state. Equipped with automatic lubrication design and front chuck clamping function, pipe cutting is more reliable
Tube-cutting auxiliary blanking
- The blanking speed is fast
- The floating lifting blanking

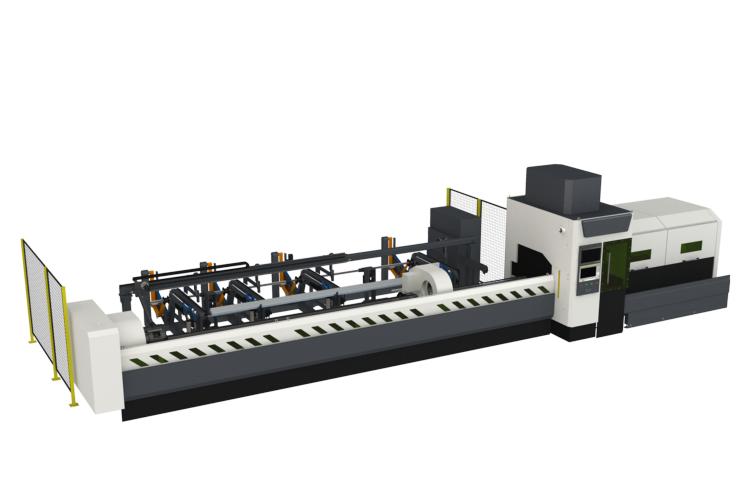

Semi-automatic loading machine
- Supports multi-pipe loading,1m buffer zone
- Supports loading of angle steel,channel steel and l-steel

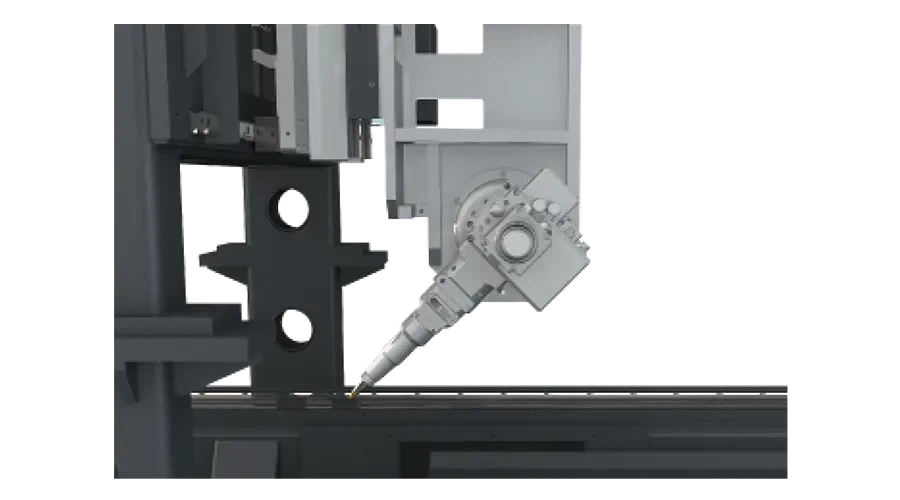

Bevel cutting function (optional)
- Independently developed by QLTEK LASER ±45° bevel cutting
- Support 360° cutting into specific shapes

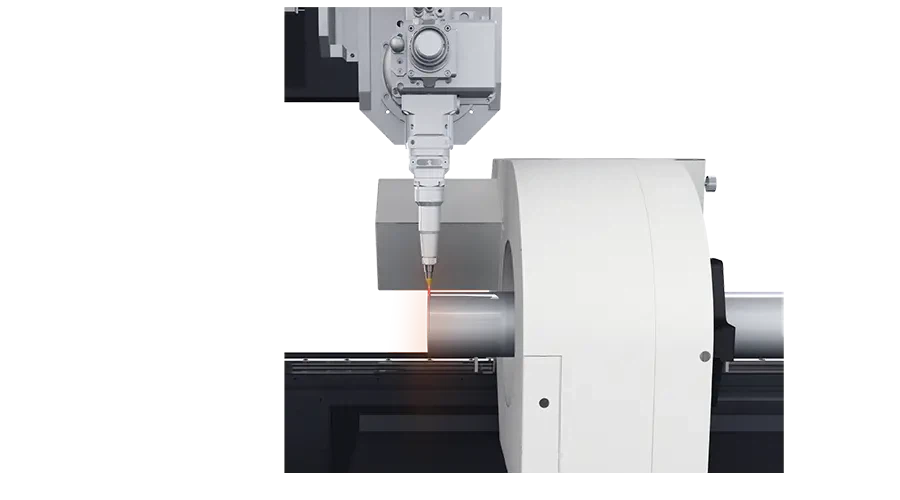

Zero waste cutting
- Zero waste for the last segment of the tube with three-chuck design

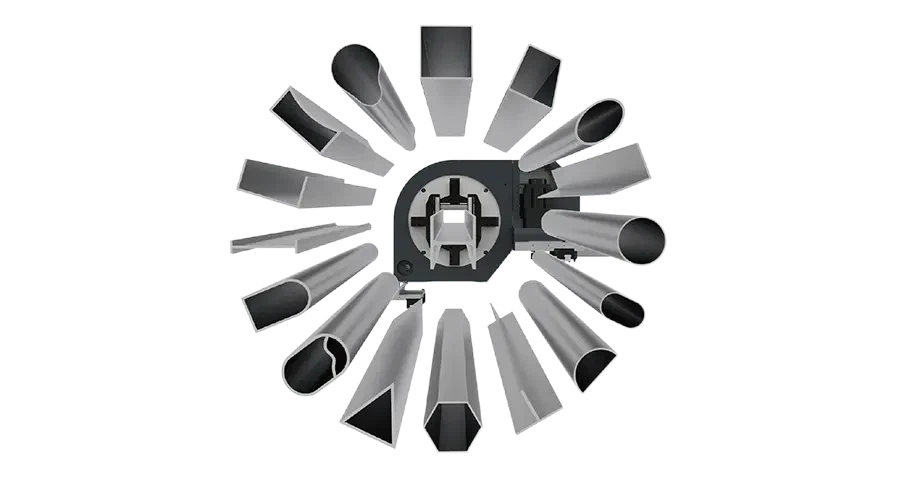

Diversified clamping mode
- Various types of pipes can be clamped freely within the range of chuck caliber, which breaks through the shape limitation of pipes and has more processing types
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
K Series |
K2 |
K2PLUS |
|||
|
Power |
3kW-6kW |
||||
|
Processing Range |
Φ10mm-200mm |
Φ12mm-280mm |
|||
|
X/Y-Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
|||
|
X/Y-Axis Repositioning Accuracy |
±0.03mm |
±0.03mm |
|||
|
Max. No-Load Running Speed |
100m/min |
100m/min |
|||
|
Max. Chuck Rotating Speed |
100r/min |
100r/min |
|||
|
Max. Weight of A Single Pipe |
130kg |
350kg |
|||
|
Maximum Processing Length |
6500mm |
7500mm |
|||
Processing Samples Gallery
