Product Overview

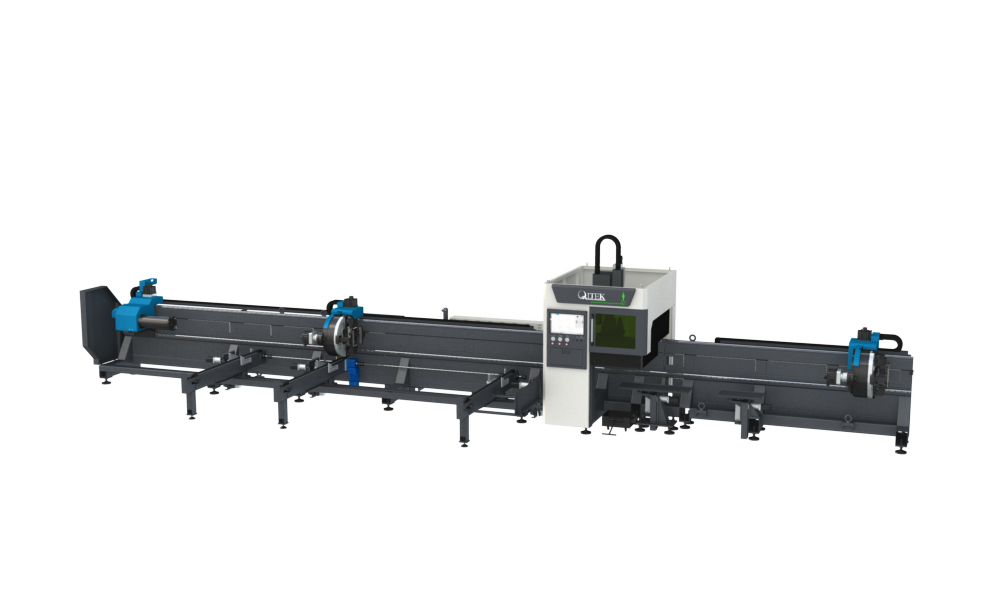

L+ Series Laser Tube Cutting Machine features a three-disc structure, zero-scrap cutting technology, and fully independent multi-mode switching for advanced and flexible tube processing. The locked composite gripper ensures stable and secure clamping, delivering high precision and reliable performance even under complex cutting conditions. Designed for high-efficiency and high-accuracy manufacturing, it is ideal for modern automated tube production applications.
Why Choose QLTEK L+ Series (L2+)?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

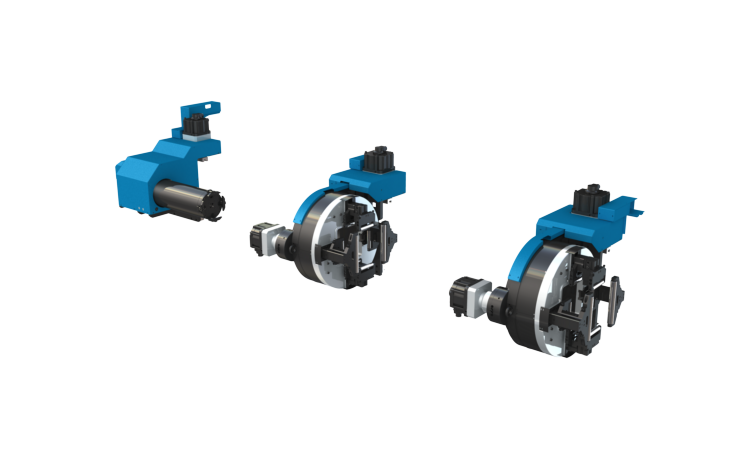

Three-disc structure
- Three-disc clamping structure ensures stronger tube support and enhanced rotational stability during processing
- Improves cutting accuracy by maintaining precise alignment of long and heavy tubes

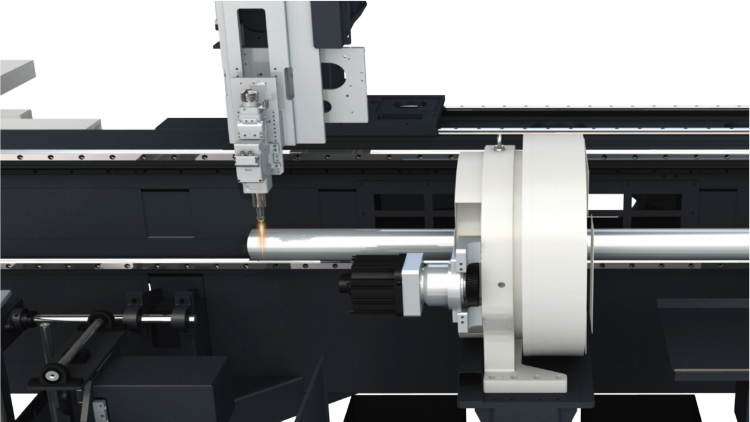

Zero-scrap cutting
- Advanced cutting strategy minimizes or eliminates material waste during processing
- Optimized nesting and cutting paths improve overall material utilization efficiency

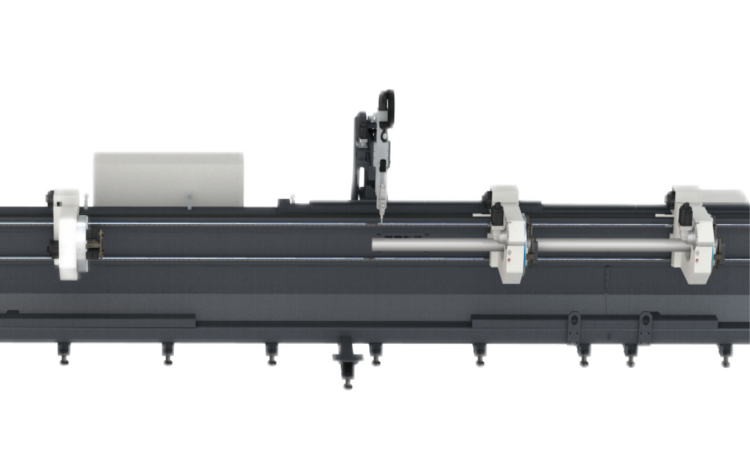

Fully independent multi-mode switching
- Independent control system enables flexible switching between different cutting modes without interruption
- Supports efficient adaptation to varied tube types and processing requirements

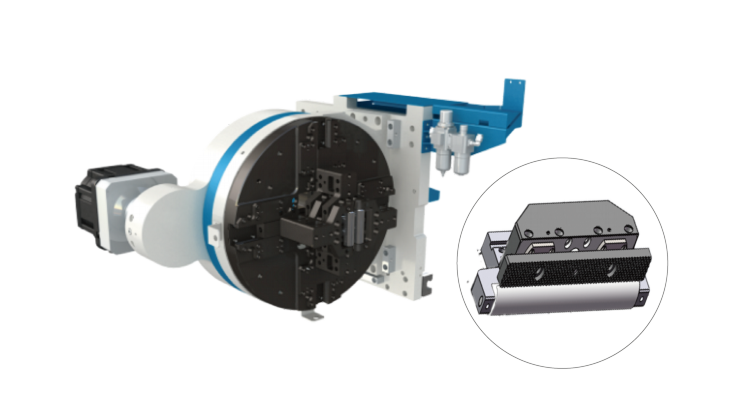

Locked composite gripper
- Secure locking composite gripper ensures stable and firm clamping of tubes during high-speed processing
- Prevents slippage and improves cutting accuracy under heavy-duty operating conditions
|
L+ Series |
L2+ |
|
Power |
3kw-6kw |
|
Processing Range |
Φ15mm-240mm Φ15mm-240mm |
|
X/Y-Axis Positioning Accuracy |
±0.05mm/m |
|
X/Y-Axis Repositioning Accuracy |
±0.03mm |
|
Max. No-Load Running Speed |
100m/min |
|
Max. Chuck Rotating Speed |
100r/min |
|
Max. Weight of A Single Pipe |
350kg |
|
Maximum Processing Length |
6500mm |

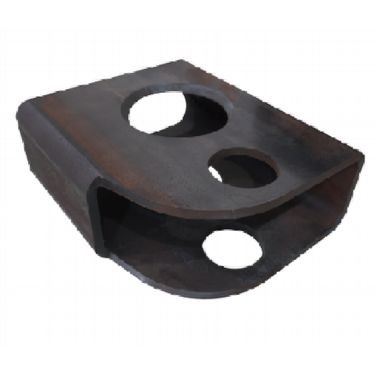

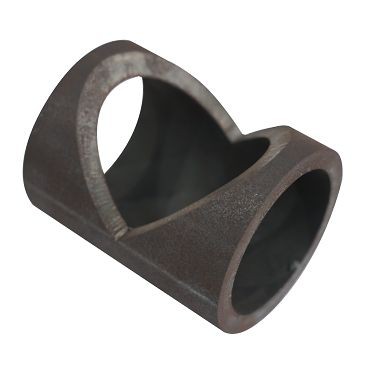

Samples
