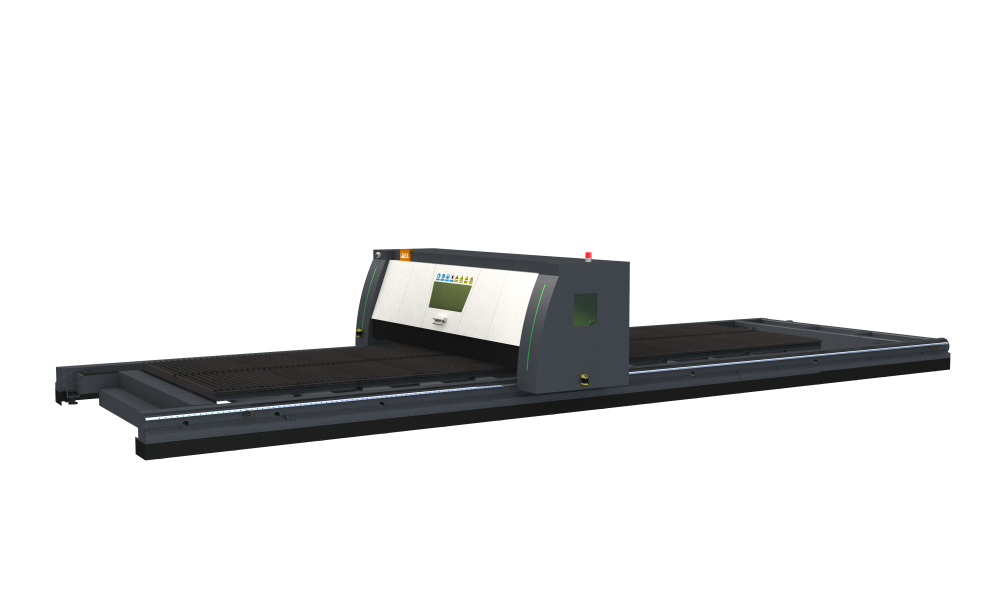

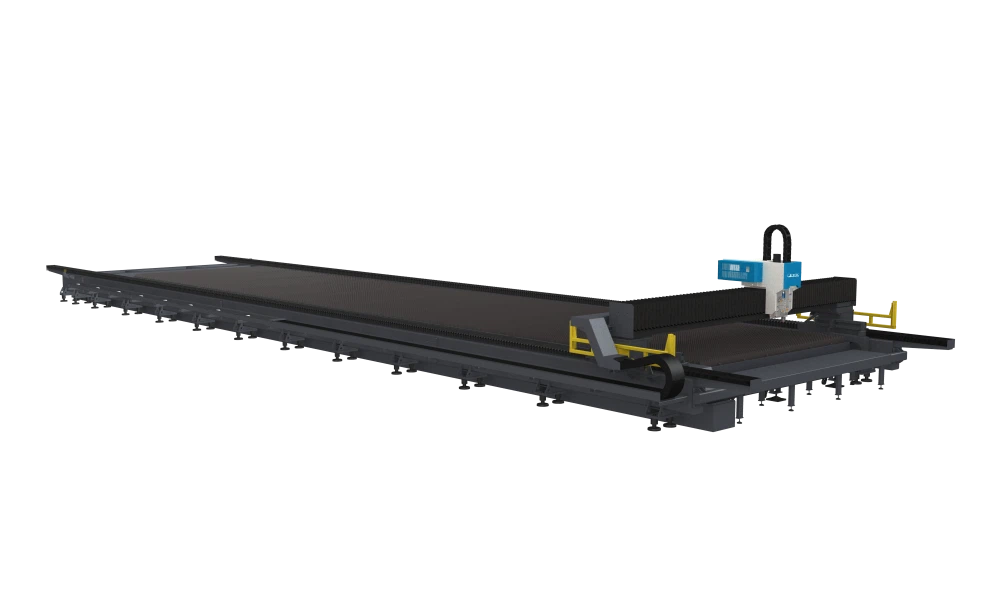

Product Overview

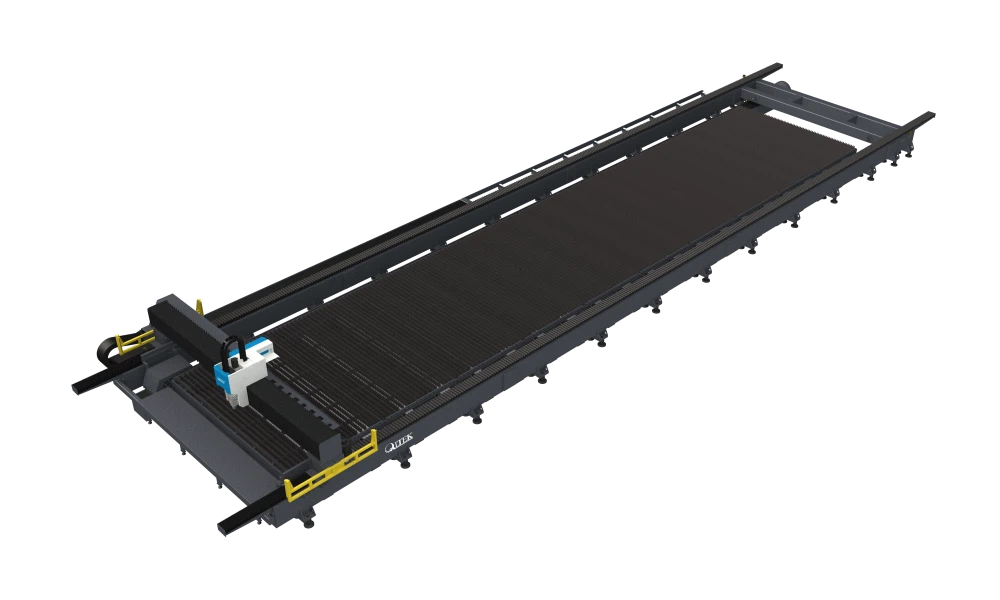

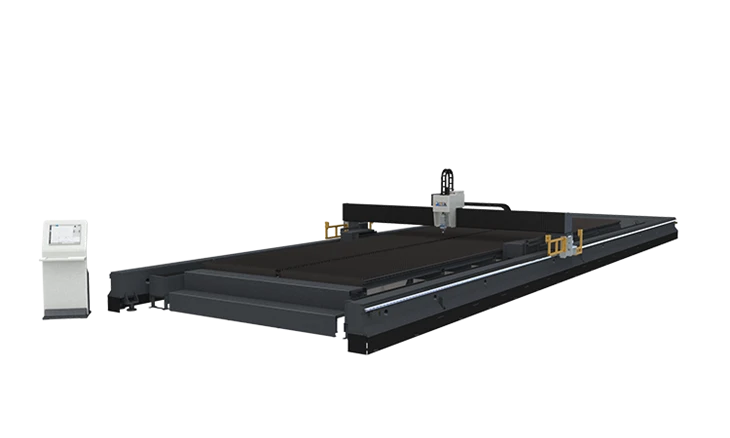

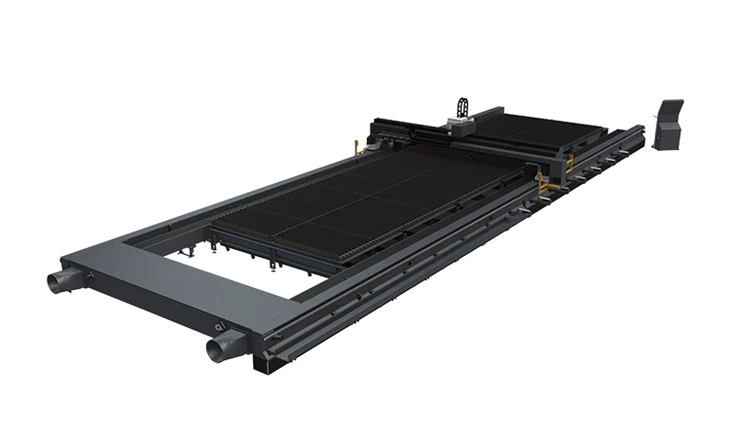

HG laser cutter features a precision welded lathe bed with segmented, floor-mounted design. Separate workbench, automatic lubrication, intelligent integration, visual control, dust removal system, and low-emission operation ensure maintenance-free, eco-friendly performance.
Why Choose QLTEK HG Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

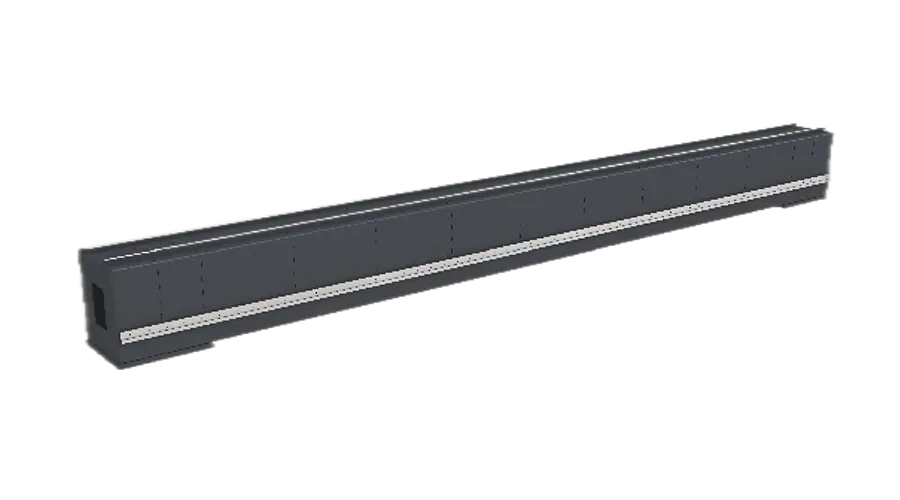

Integrated steel welded beam
- Small deformationamount
- High-precision
- Good dynamic performance

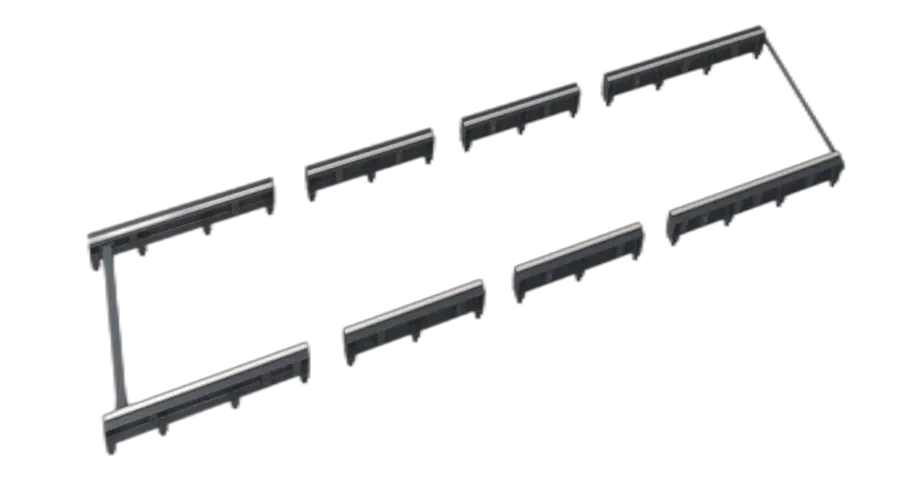

Precision welding combined lathe bed
- Segmented and floor-mounted splicing
- The lathe bed is separated from the workbench

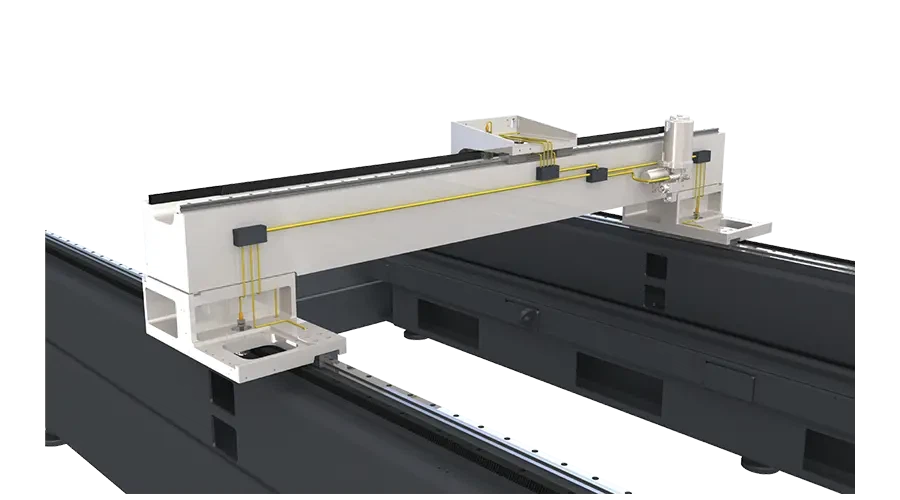

Automatic lubrication system
- Intelligent integration
- Visual control and maintenance-free

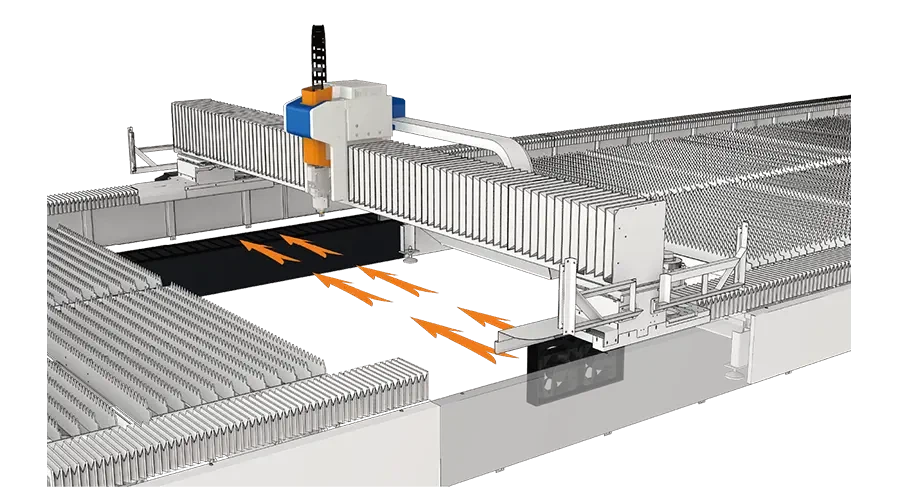

Follow-up dust removal structure
- Less smoke and dust, environmental protection

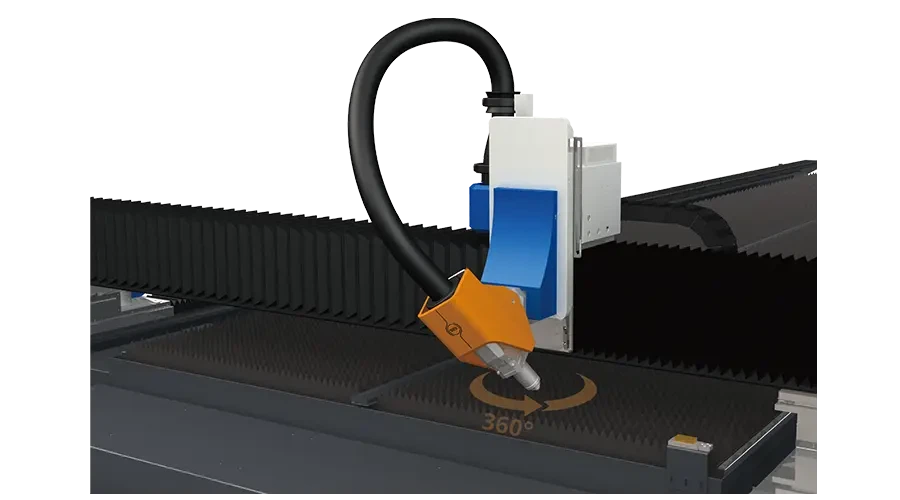

Multi-angle A/B rotating shaft mechanism(optional)
- Precise control of bevel cutting trajectory Can cut k, x, y, a, v, etc.It can realize 360-degree infinite rotation cutting

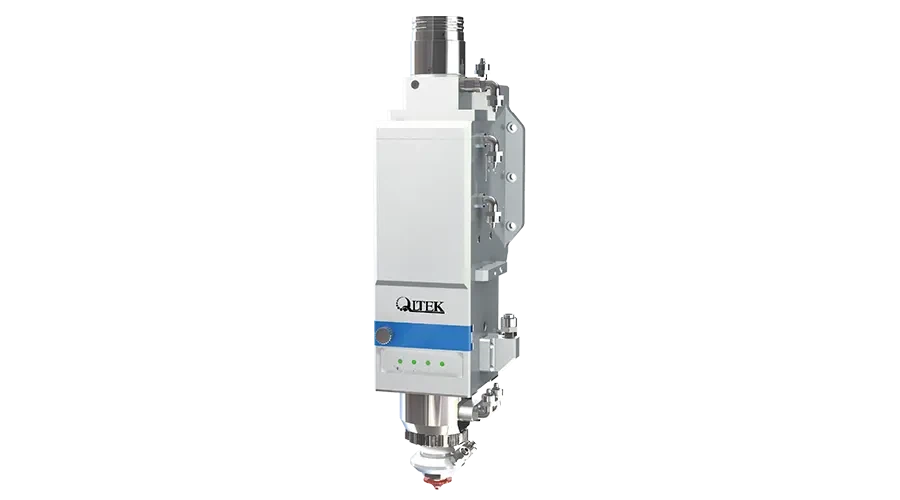

Autofocus laser cutting head
- Brand-new optical design, covering more than 90% of water cooling area, controlling cutting heat
- Multi-layer drawer-type protective mirror structure, simple maintenance and low use cost
- Multiple temperature detection, real-time monitoring of cutting head status
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
HG Series |
HG15030 |
HG15035 |
HG15040 |
||
|
Power |
12kW-80kW |
12kW-80kW |
12kW-80kW |
||
|
Cutting Area(length*width) |
15000mm*3000mm |
15000mm*3500mm |
15000mm*4000mm |
||
|
X-Axis Travel |
15000mm(length can be customized according to requirements) |
||||
|
Y-Axis Travel |
3100mm |
3600mm |
4100mm |
||
|
Z-Axis Travel |
270mm |
270mm |
270mm |
||
|
X/Y Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
||
Samples
