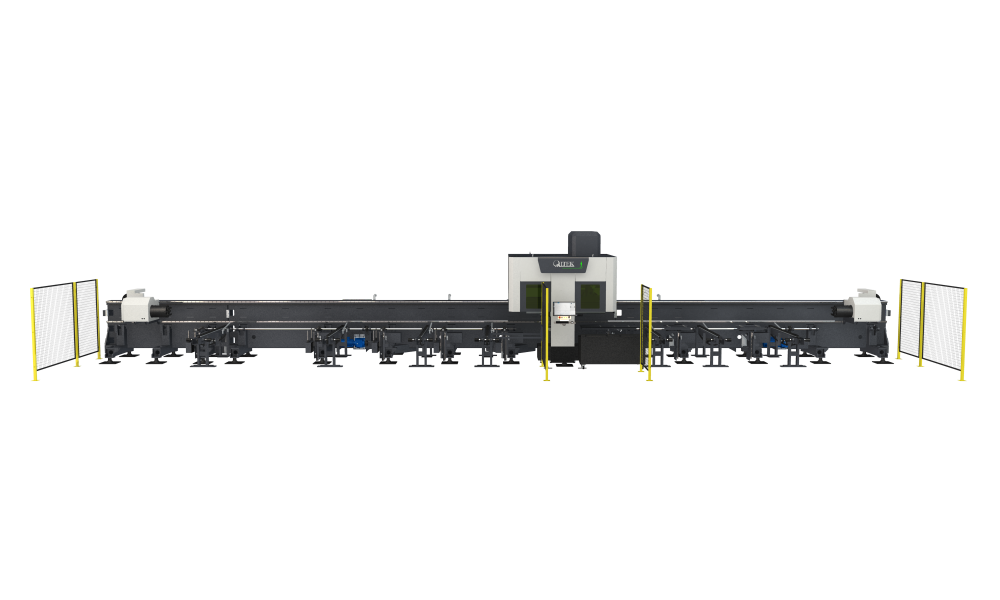

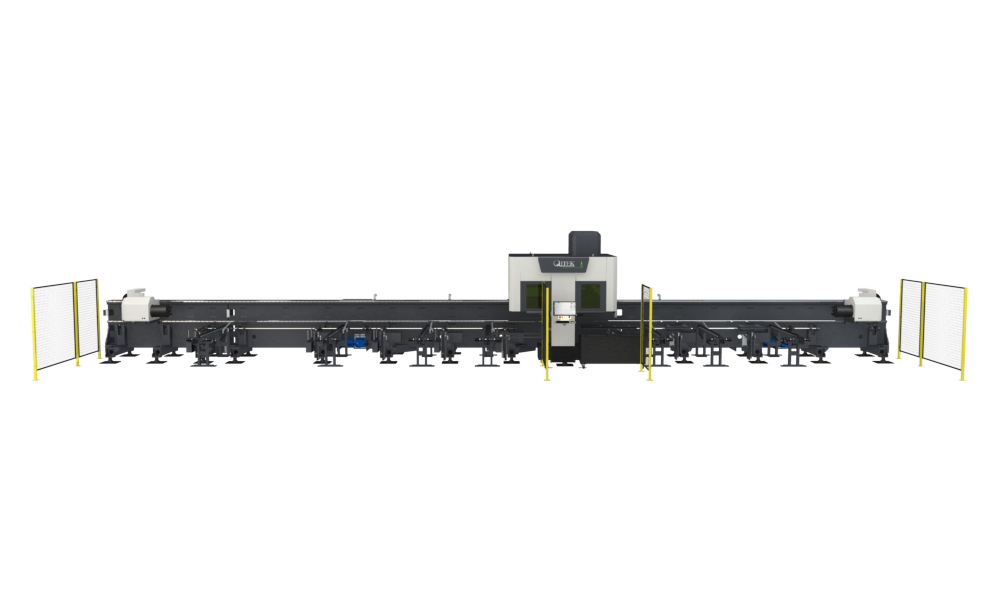

Heavy-Duty 2+1 Chuck Laser Tube Cutting Machine

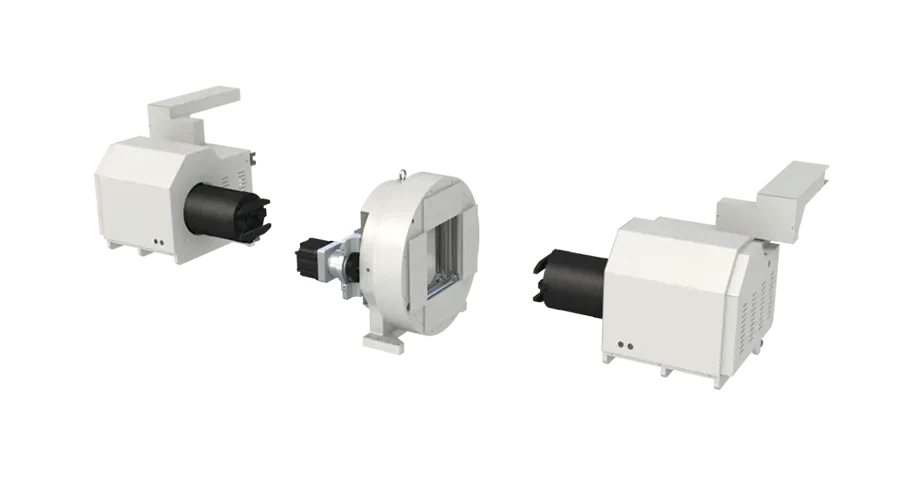

Full-stroke chuck

•   It has a high load-bearing capacity, and the maximum load-bearing capacity for a single pipe can reach 1200 kg
•   It has a large clamping range, and can clamp and cut pipes with a maximum diameter of 360mm

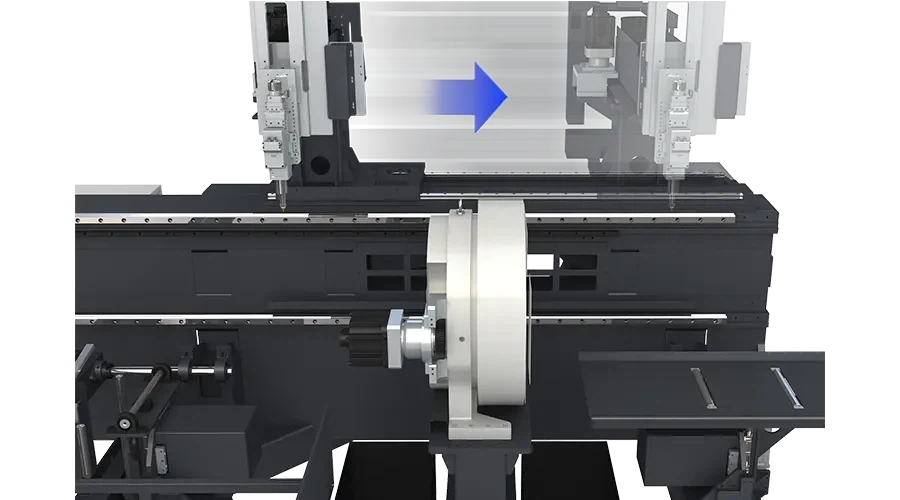

Double-station design

•   Cantilever Crossbeam Servo Over-positioning

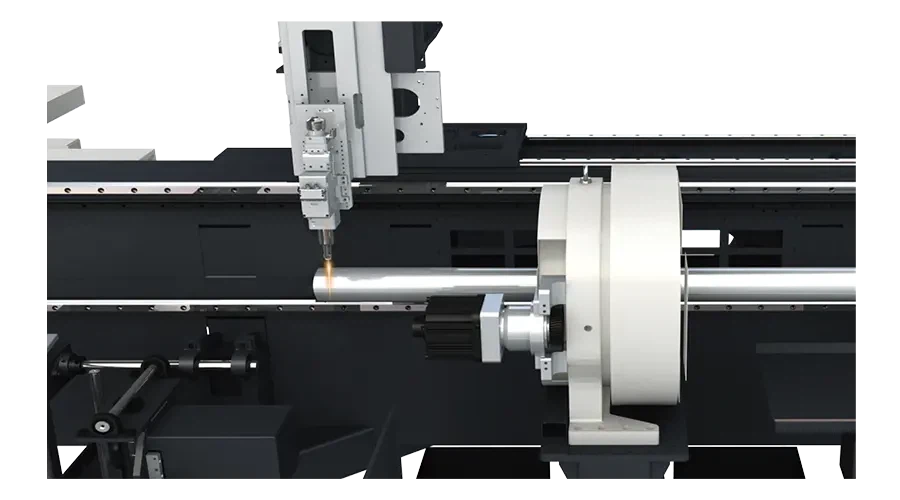

Zero waste cutting

•   The minimum cutting scrap length of the L3pro+ model is 0 mm
•   It adopts servo drive for high-speed positioning at any position within the stroke, and cooperates with the three-jaw chuck to achieve efficient zero waste cutting

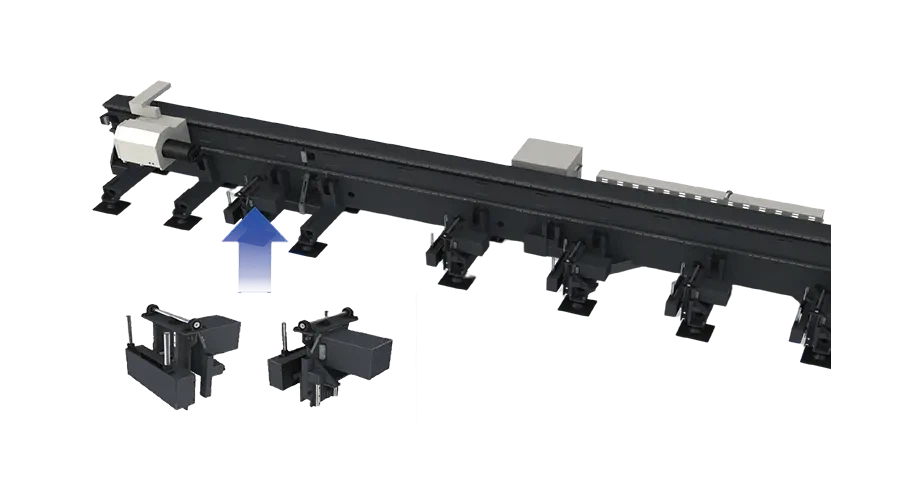

Auxiliary loading support

•   Adopting servo control, manually place the pipe on the support, and the support automatically positions the pipe to the center of the chuck, making loading more labor-saving
•   Supports automatic centering of profiles such as channel steel and angle iron to prevent offset and chuck damage during pipe loading into the chuck

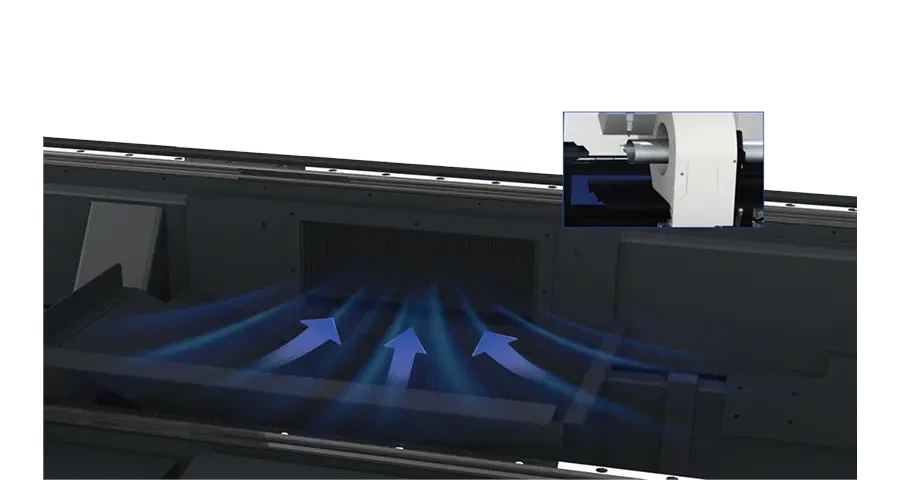

Dust extraction structure

•   High-efficiency dust and fume extraction system for clean cutting environment
•   Reduced contamination of mechanical components
•   Easy access for maintenance and cleaning

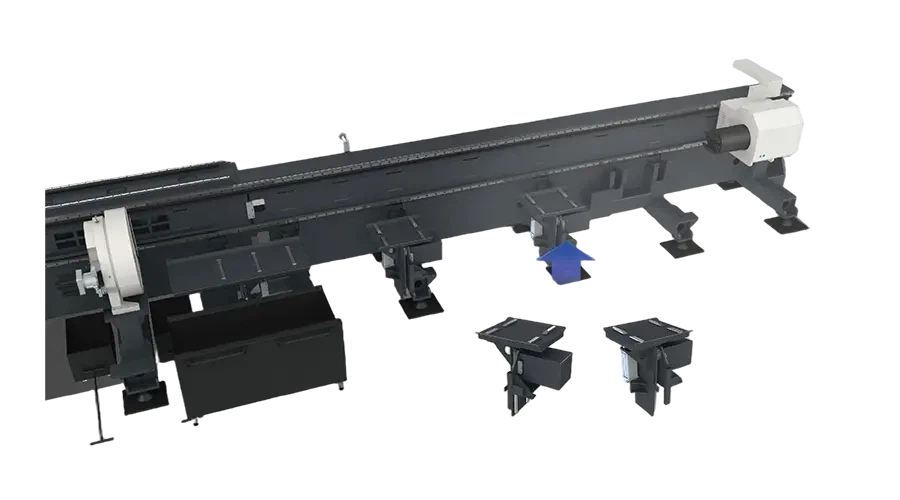

Auxiliary loading support

•   Automatic flipping and unloading: The unloading bracket can automatically rise and hold the pipe according to the pipe size
•   Visual numerical control interface: It can automatically adjust the height according to the input material specifications
