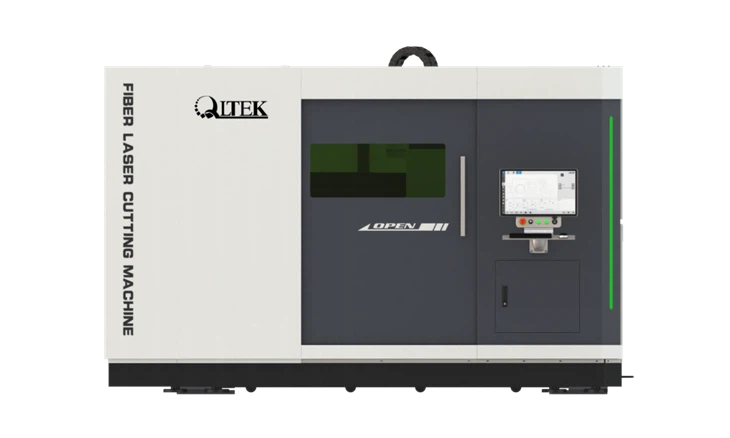

Product Overview

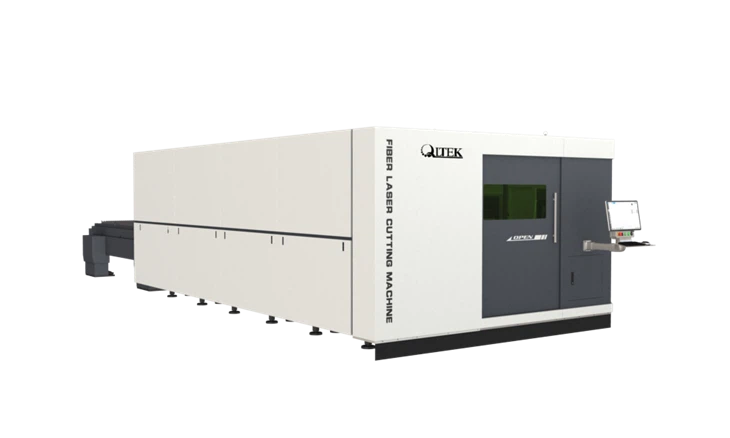

GY Series Sheet Metal Laser Cutting Machine features a hydraulic exchange platform with smooth lifting original technology. Its time-divided, zoned and segmented dust extraction system ensures strong airflow, efficiently removing heat and smoke to protect cutting stability and precision.
Why Choose QLTEK GY Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

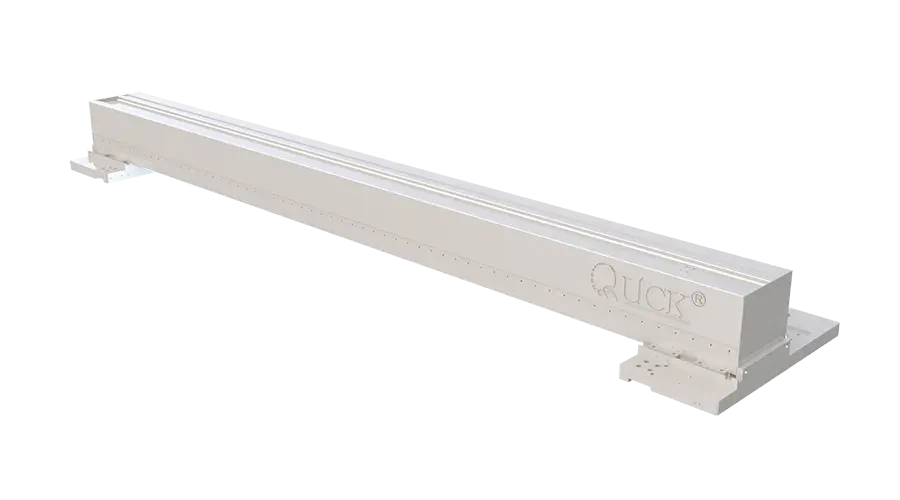

High strength aluminum alloy beam
- Light weight
- High dynamic performance

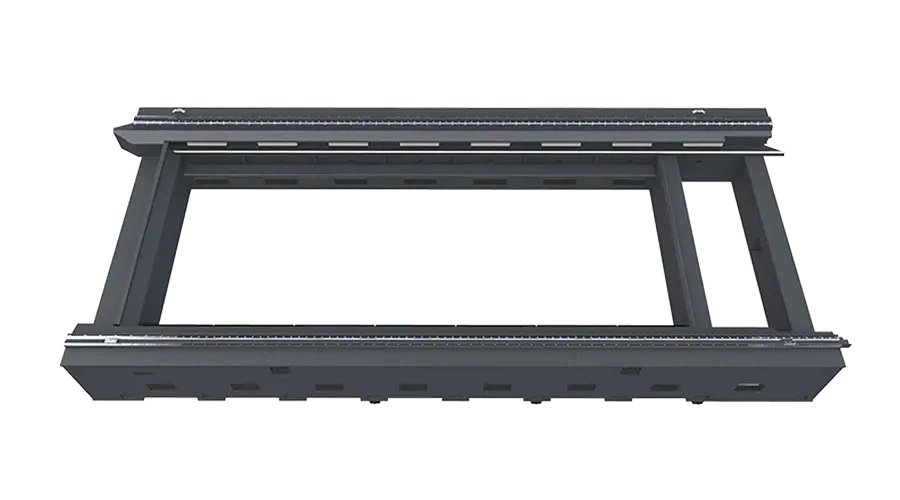

Integral welded structure machine tool
- Design of hollow and semi-hollow structure of main lathe bed
- Steel plate welded structure machine tool
The hydraulic lifting mechanism
- High bearing capacity
- Stable and efficient
Automatic lubrication system
- Intelligent integration
- Visual control and maintenance-free

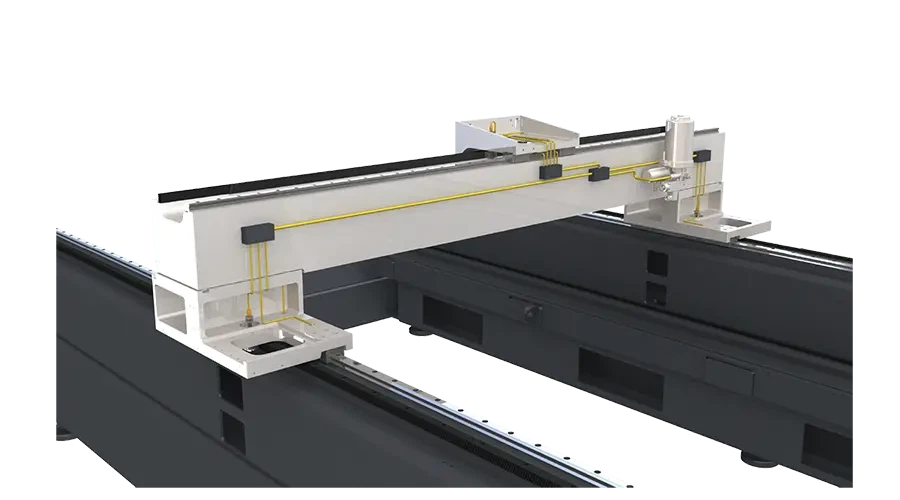

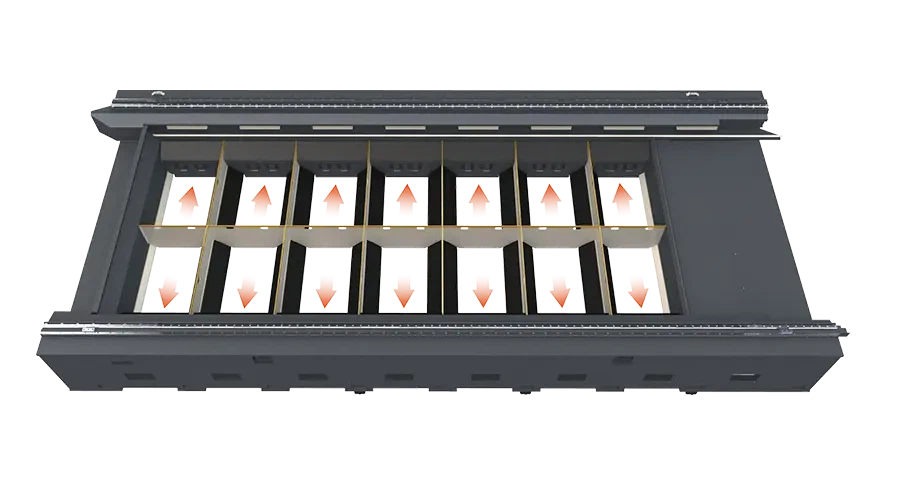

Double-sided partition dust removal
- Less smoke and dust, environmental protection

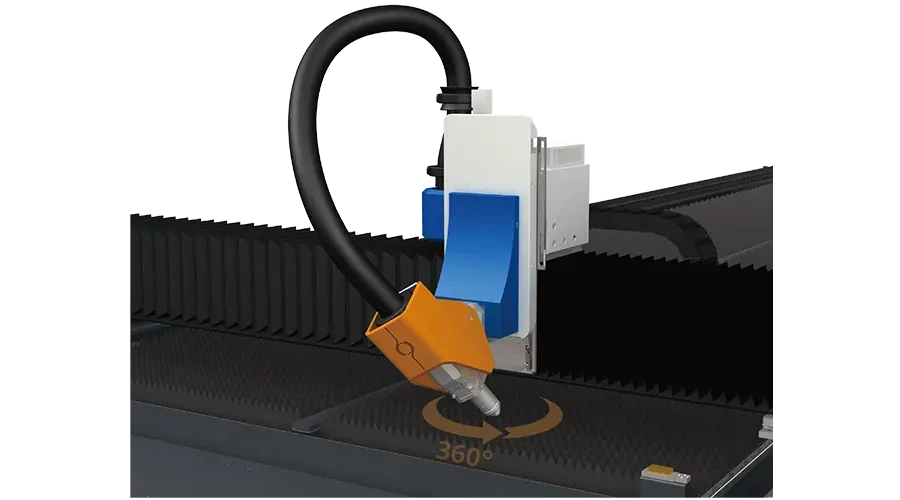

Multi-angle A/B rotating shaft mechanism(optional)
- Precise control of bevel cutting trajectory Can cut k, x, y, a, v, etc.It can realize 360-degree infinite rotation cutting
Beckhoff control system
- Integrated drawing+ cam nesting
- Diagnostics maintenance
- Expert process library
- Production statistics interconnection
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
GY Series |
GY3015 |
GY4020 |
GY6025 |
GY12025 |
|
|
Power |
6kW-40kW |
12kW-40kW |
|||
|
Cutting Area(length*width) |
3048mm*1524mm |
4000mm*2000mm |
6000mm*2500mm |
12000mm*2500mm |
|
|
X-Axis Travel |
3100mm |
4100mm |
6100mm |
12200mm |
|
|
Y-Axis Travel |
1600mm |
2100mm |
2600mm |
2600mm |
|
|
Z-Axis Travel |
150mm |
150mm |
150mm |
150mm |
|
|
X/Y Axis Positioning Accuracy |
±0.03mm/m |
±0.03mm/m |
±0.03mm/m |
±0.03mm/m |
|
|
X/Y Max. Linkage Speed |
140m/min |
140m/min |
140m/min |
140m/min |
|
|
X/Y Max. Linkage Acceleration |
2.5g |
2.5g |
2.5g |
2.0g |
|

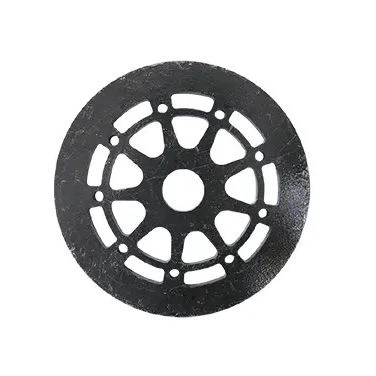

Samples
