Product Overview
HF laser cutter features Beckhoff control system, segmented modular structure, enclosed beam protection, independent guarding design, dual-guide rail system, innovative composite motion, intelligent dust removal, and adaptive support layout. Optional laser safety scanner and bevel cutting provide enhanced safety and processing flexibility.
Why Choose QLTEK HF Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Main Feature

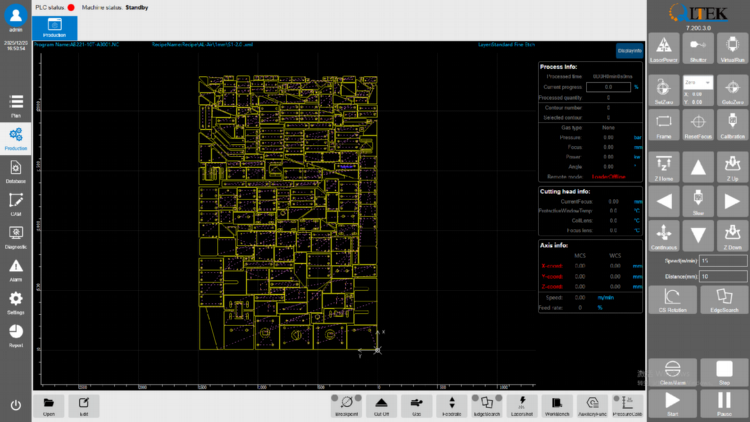

Beckhoff control system
- Integrated drawing+ cam nesting
- Diagnostics maintenance
- Expert process library
- Production statistics interconnection

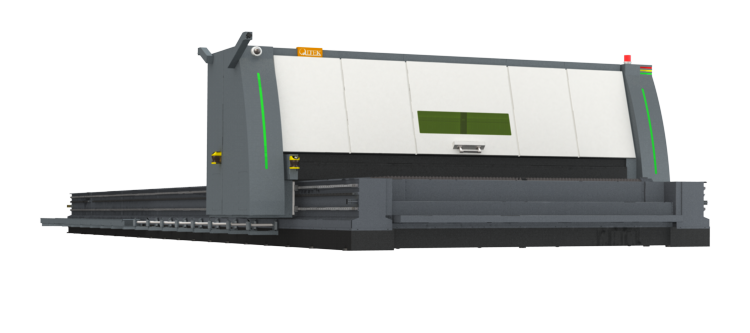

Beam Enclosure Protection
- Protects beam transmission components from dust and contamination
- Improves operator safety during machine operation
- Reduces maintenance requirements and extends service life

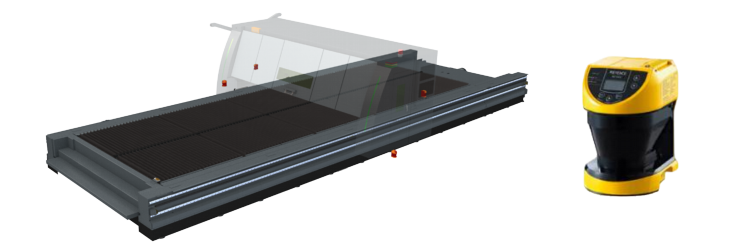

Safety Laser Scanners
- Real-time safety zone monitoring
- Automatic hazard detection and protection
- Improved operational safety and risk prevention
- Optional intelligent safety upgrade

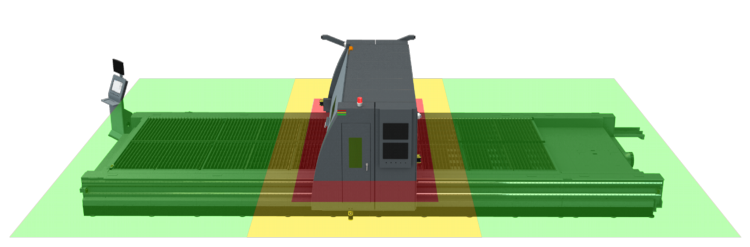

Safety Detection Range
- Wide and precise safety monitoring coverage
- Reduced blind spots for improved protection
- Enhanced operational safety control

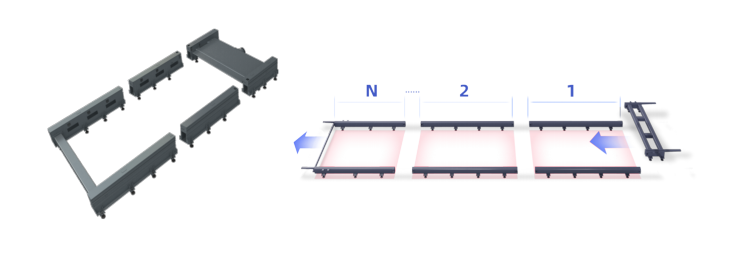

Sectional Structure,Customizable Length,Transporation-40HQ
- Optimized for 40HQ container transportation to reduce shipping limitations
- Easier installation, relocation, and on-site assembly
- Lower transportation cost with improved logistics efficiency

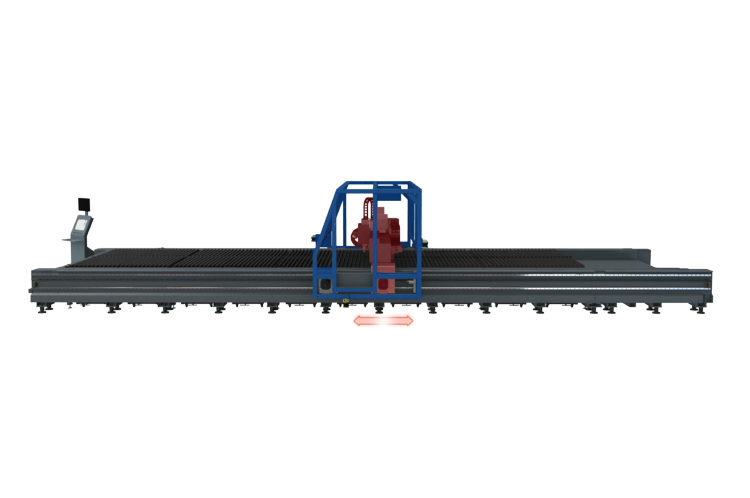

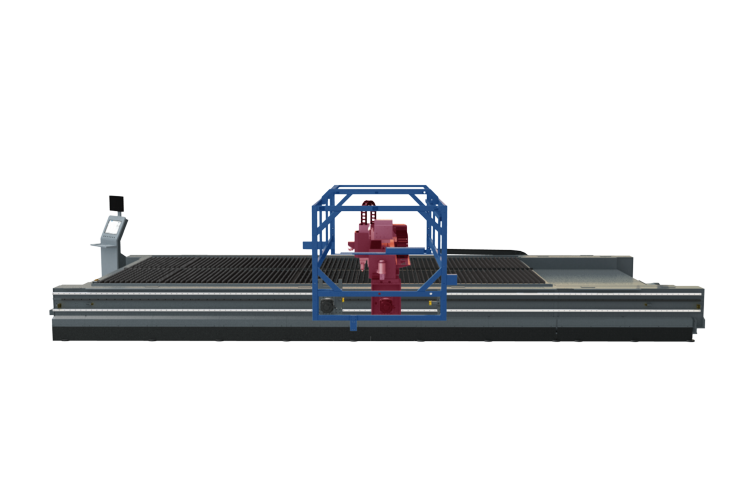

Separate Protection Structure Dual-Guide Rail Design
- Independent protection structure improves machine safety and protects core components from external impact
- Dual-guide rail design enhances running stability and ensures higher cutting precision
- Optimized structural rigidity supports long-term reliable and efficient operation
Innovative composite motion, with independent crossbeam operation, achieving high precision and high speed.
- Independent crossbeam movement improves motion flexibility and overall processing efficiency
- Advanced composite motion system ensures high-speed response and stable operation
- High-precision control enables accurate cutting quality under dynamic conditions

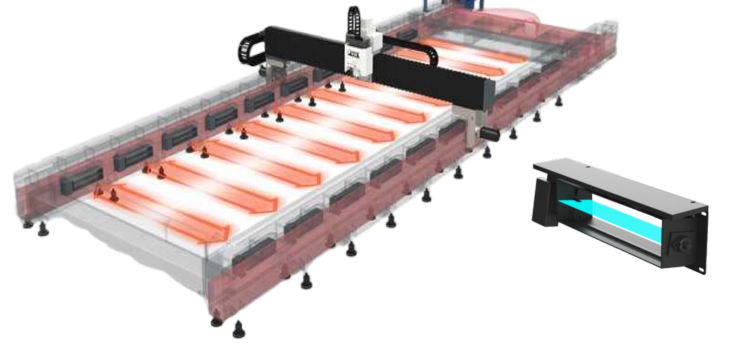

Intelligent follow-up dust removal technology
- Real-time synchronized dust extraction improves cutting environment cleanliness
- Reduces smoke and particulate accumulation for safer operation
- Enhances machine performance and extends service life through cleaner processing conditions

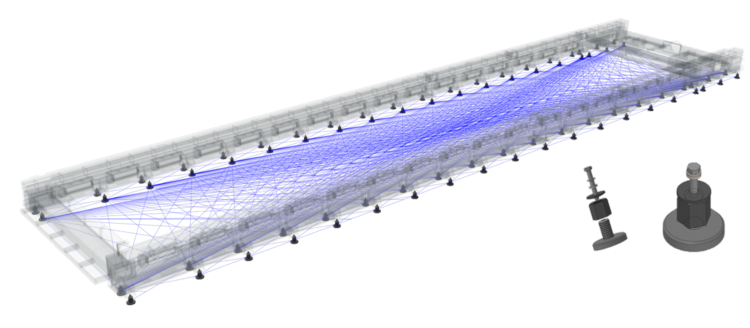

Adaptive combination support feet, 4+4 layout
- Adaptive support system automatically adjusts for stable machine leveling and load distribution
- Adaptive support system automatically adjusts for stable machine leveling and load distribution
- Reduces vibration during operation, ensuring higher cutting accuracy and stability
|
PARAMETER |
|||||
|---|---|---|---|---|---|
|
HF Series |
HF 15030 |
HF 15035 |
HF 15040 |
||
|
Power |
12kW-80kW |
12kW-80kW |
12kW-80kW |
||
|
Cutting Area(length*width) |
15000mm*3000mm |
15000mm*3500mm |
15000mm*4000mm |
||
|
X-Axis Travel |
15000mm(length can be customized according to requirements) |
||||
|
Y-Axis Travel |
3100mm |
3600mm |
4100mm |
||
|
Z-Axis Travel |
270mm |
270mm |
270mm |
||
|
X/Y Axis Positioning Accuracy |
±0.05mm/m |
±0.05mm/m |
±0.05mm/m |
||

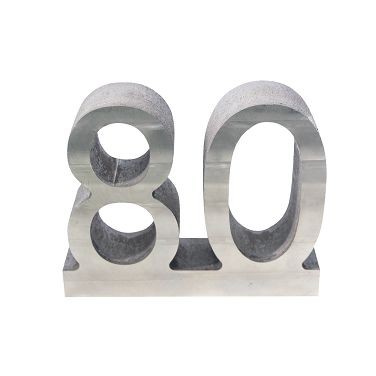

Samples
