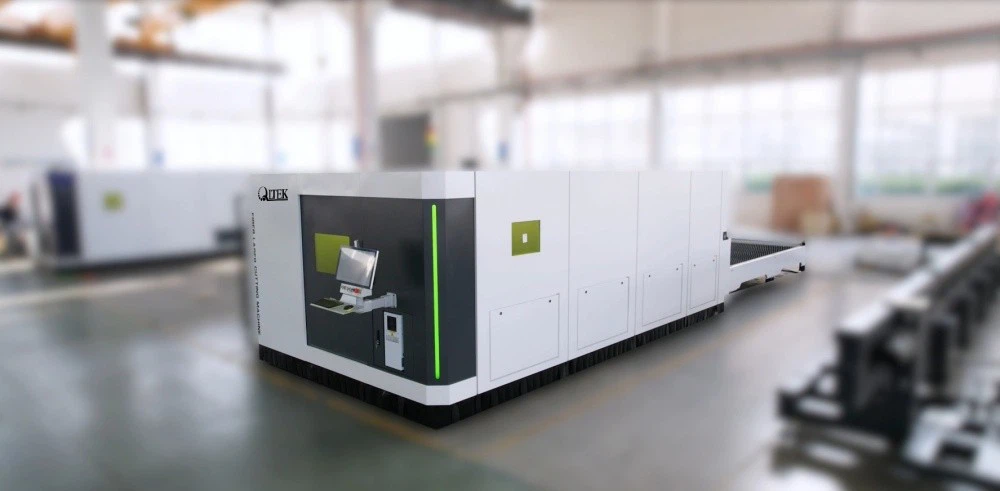

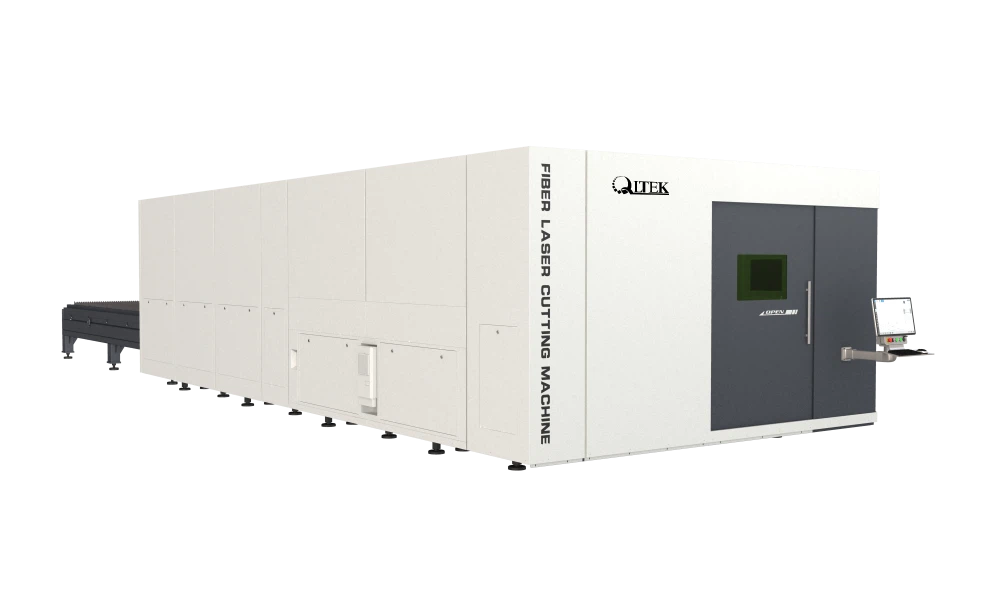

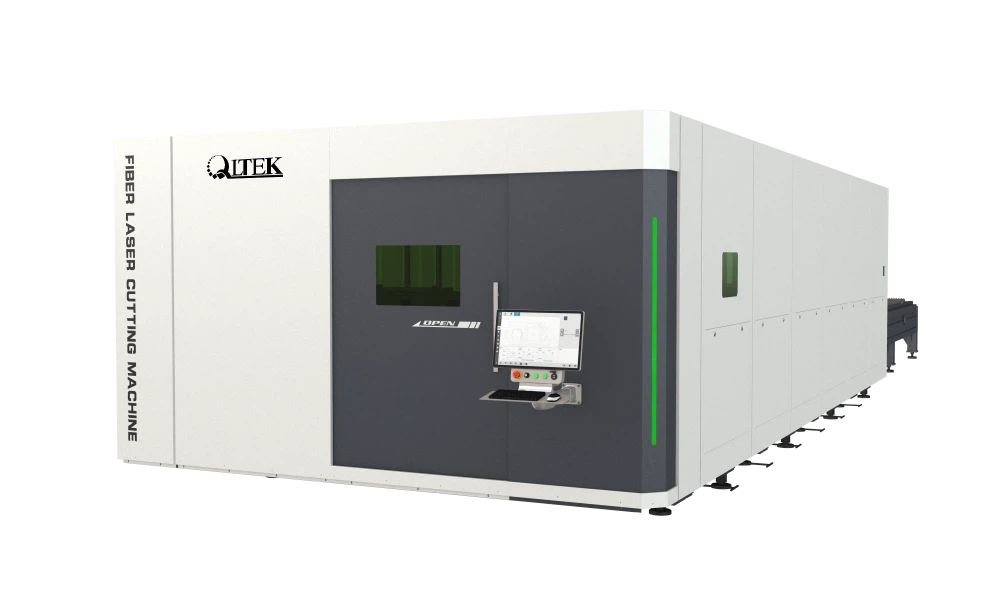

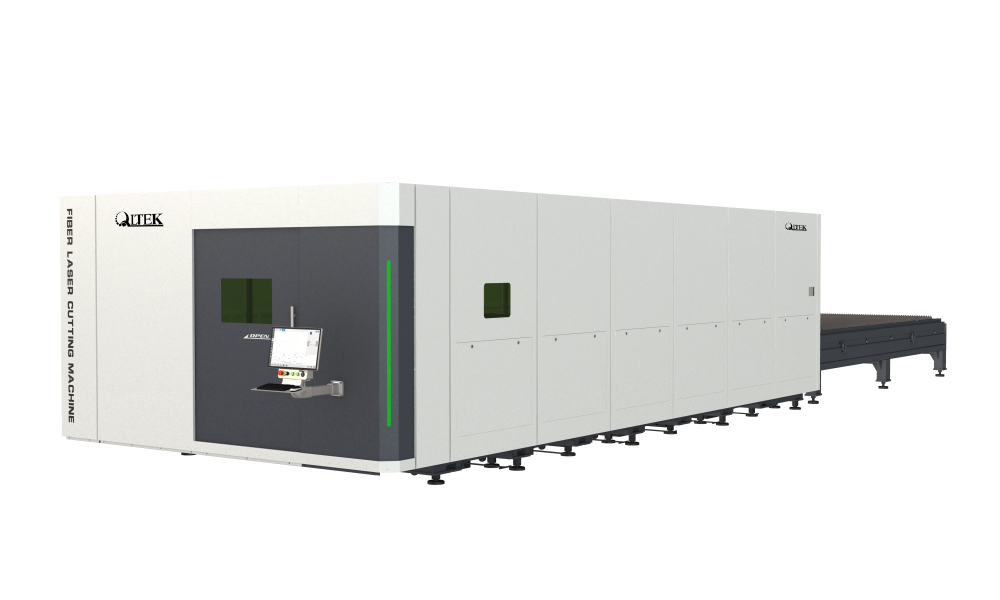

Product Overview
QLTEK GI series ultra-high-speed cutting machine is an industrial-grade solution designed for manufacturing plants and automated production lines. With 3–40KW power, high speed, and excellent stability, it boosts cutting efficiency and reduces per-part costs-making it an ideal choice for efficient, reliable production.
Why Choose QLTEK GI Series?
Ultra-High Speed
High Precision
High Quality
High Safety
Intelligentization
Compared with Conventional Laser Cutting Solutions
Compared to traditional cutting methods, the GI ultra-high-speed laser cutting machine has 50% higher cutting efficiency and a 35% lower cost per unit.
| Compared with Conventional Laser Cutting Solutions | ||
| Feature | Our Machine | Conventional Solutions |
| Cutting Stability | High,suitable for long runs | May vary |
| Bevel Cutting | Supported | Limited or optional |
| Process Data | Comprehensive &optimized | Basic |
| Machine Structure | Heavy-duty,premium materials | Standard build |
| Operation | Intuitive &ergonomic | More complex |
Main Feature

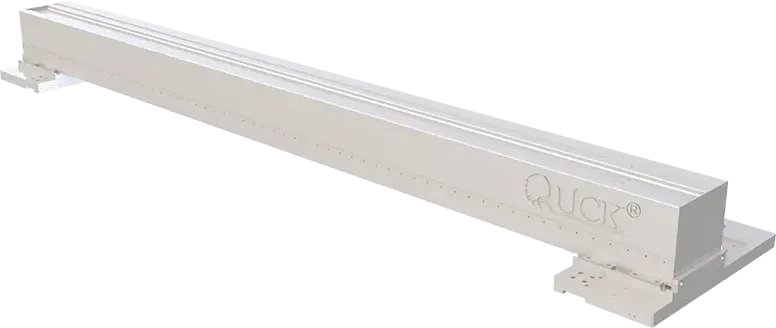

High strength aluminum alloy beam
- Light weight
- High dynamic performance

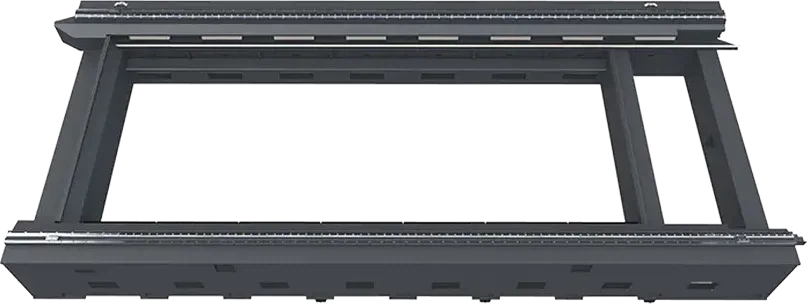

Integral welded structure machine tool
- Design of hollow and semi-hollow structure of main lathe bed
- Steel plate welded structure machine tool

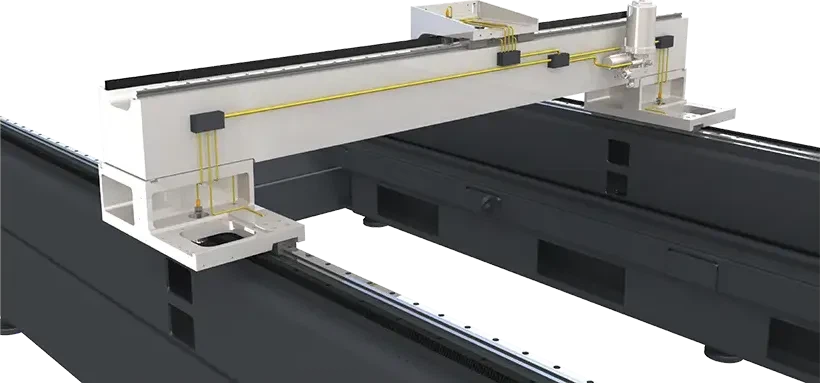

Automatic lubrication system
- Intelligent integration
- Visual control and maintenance-free

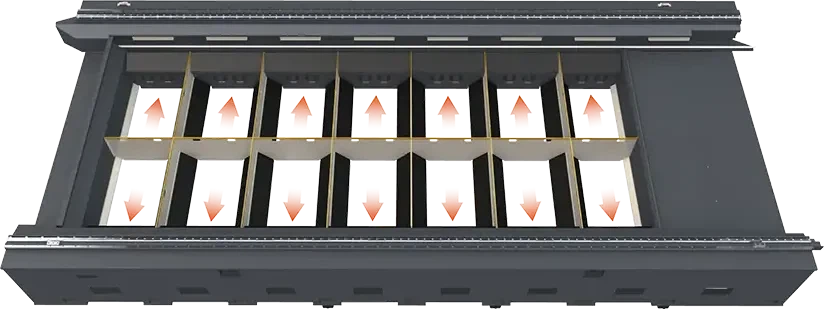

Double-sided partition dust removal
- Less smoke and dust, environmental protection

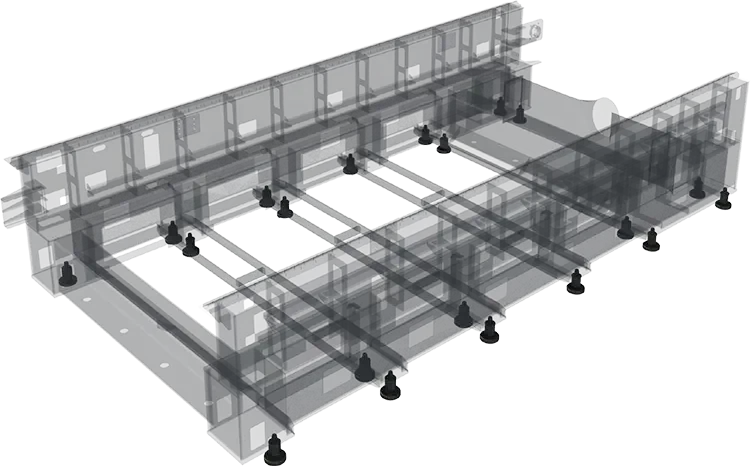

Self-adaptive combined support feet
- Double spherical gasket design, reduce the impact and vibration of operation, and make high-speed operation more stable

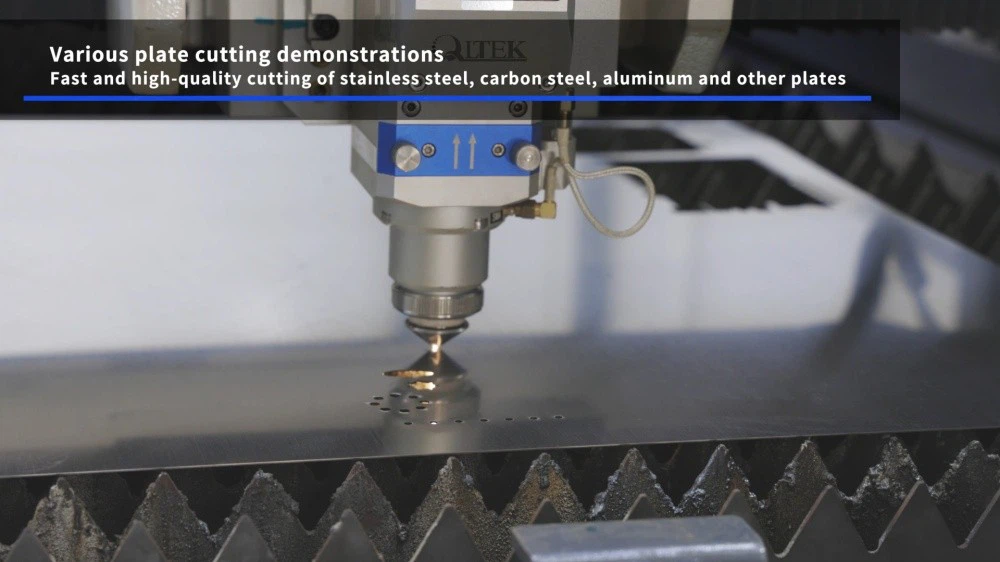

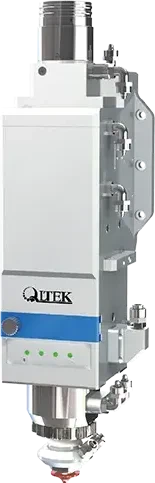

Autofocus laser cutting head
- Brand-new optical design, covering more than 90% of water cooling area, controlling cutting hea
- Multi-layer drawer-type protective mirror structure, simple maintenance and low use cost
- Multiple temperature detection, real-time monitoring of cutting head status

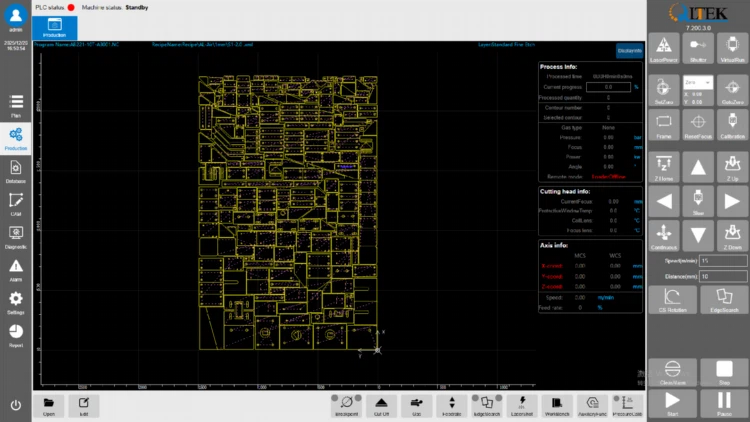

Beckhoff control system
- Integrated drawing+ cam nesting
- Diagnostics maintenance
- Expert process library
- Production statistics interconnection
|
PARAMETER |
|||||
|---|---|---|---|---|---|
| GI SERIES | GI3015 | GI4020 | GI6025 | GI8025 | GI12025 |
| Power | 3kW-20kW | 12kW-40 | |||
| Cutting Area(length*width) | 3048mm*1524mm | 4100mm*2080mm | 6150mm*2580mm | 8000mm*2500mm | 12000mm*2500mm |
| X-Axis Travel | 3100mm | 4100mm | 6200mm | 8100mm | 12200mm |
| Y-Axis Travel | 1570mm | 2130mm | 2600mm | 2600mm | 2600mm |
| Z-Axis Travel | 280mm | 280mm | 350mm | 380mm | 380mm |
| X/Y Axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |

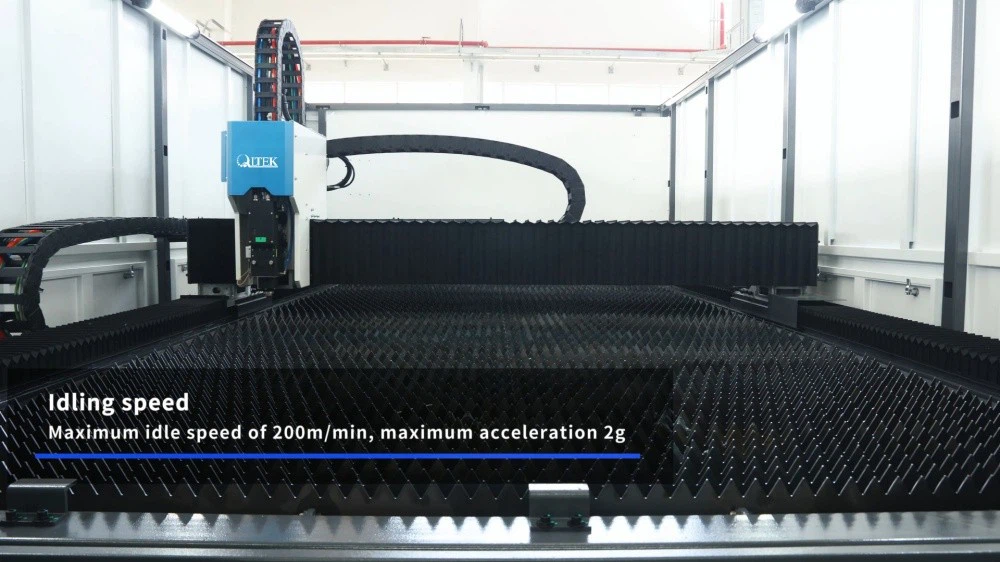

| X/Y Max. Linkage Speed | 140m/min | 140m/min | 140m/min | 200m/min | 200m/min |
| X/Y Max. Linkage Acceleration | 2.5g | 2.5g | 2.5g | 1.8g | 1.5g |
GI Series Demonstration Videos by Model
- GI3015
- GI6025

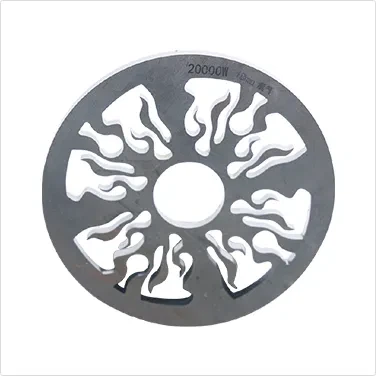

Processing Samples Gallery
